Description

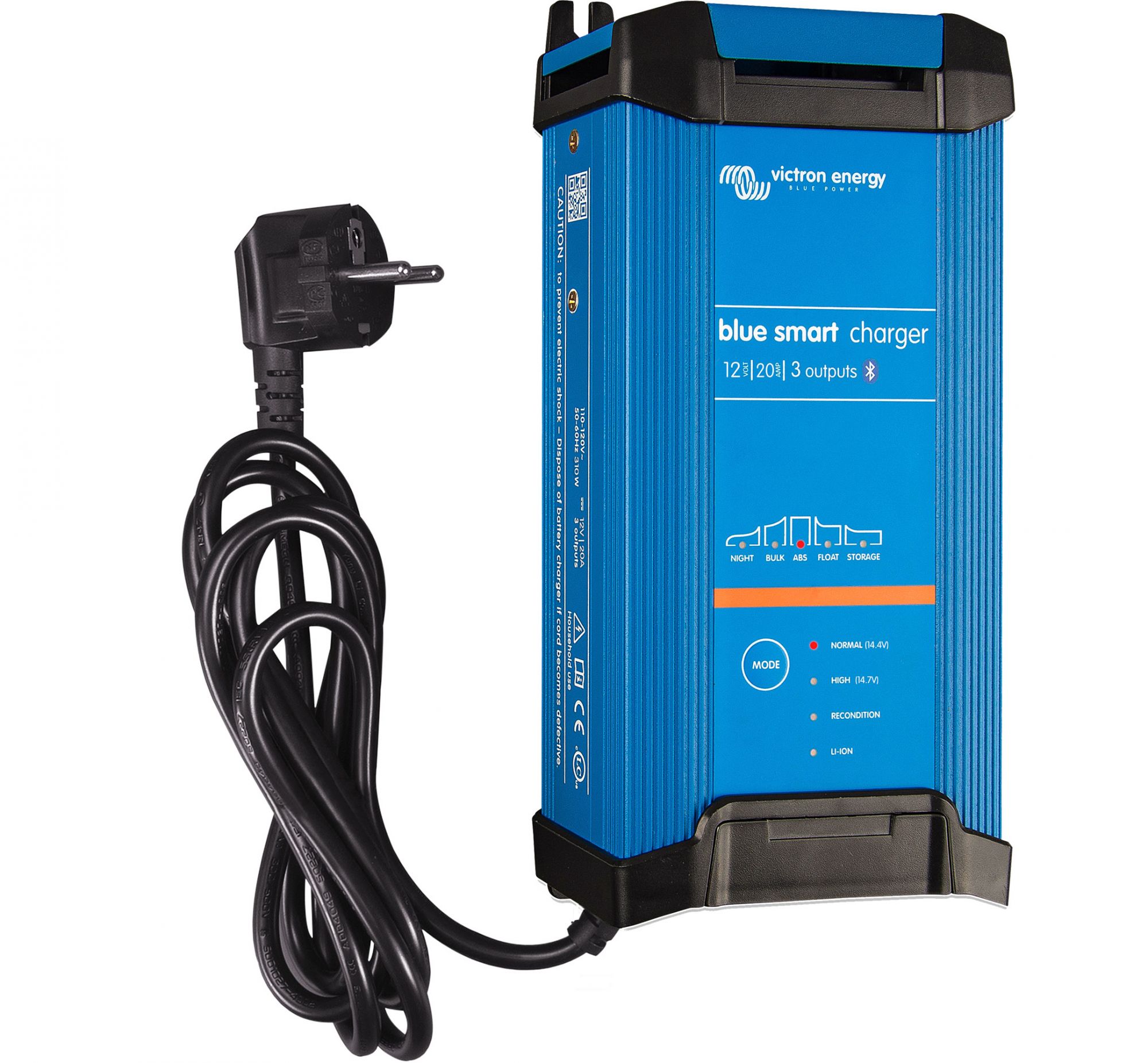

Victron Energy Blue Smart Series Battery Charger 12V 20A 3 outputs IP22.
The Blue Smart IP22 Charger is the new professional battery charger with built-in bluetooth. The Blue Smart IP22 Charger can be used on devices in your workshop and on motor vehicles, such as (classic) cars; motorbikes; boats and camper-vans.
The battery is charged, smartly... to perfect condition
The seven-step charging algorithm gets the best out of your battery. The charger gives the battery the power it needs, maintains its health, ensures better performance... and a longer life.
Recovery of deeply-discharged 'dead' batteries
Unlike other brands, the Blue Smart IP22 Charger will attempt to recharge a deeply-discharged battery by force-feeding it with a low current. Normal charging will then be resumed as soon as there is sufficient voltage across the battery terminals.

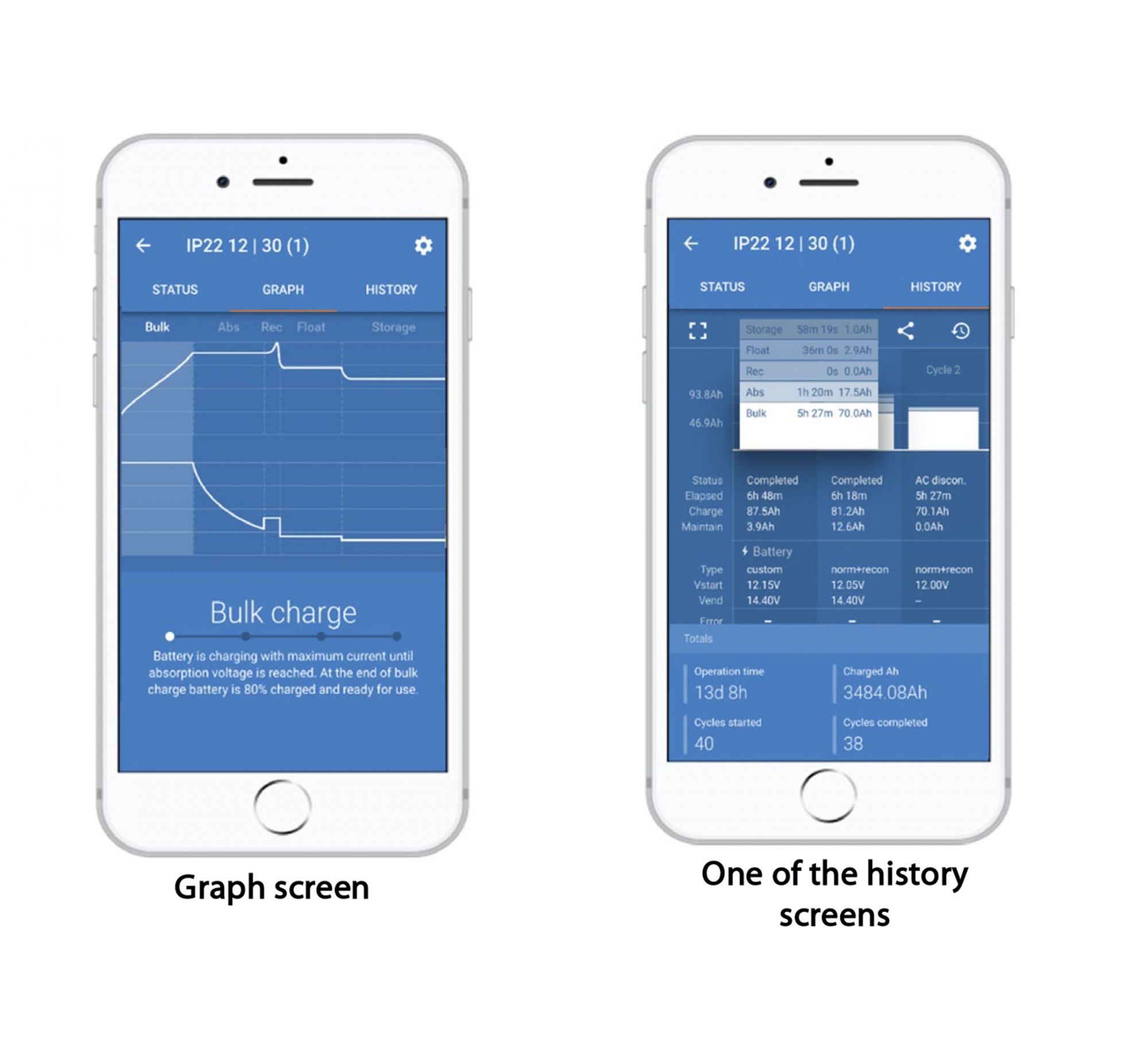

Check the status of your battery remotely
The Blue Smart IP22 is equipped with built-in Bluetooth, so the status of the charger and the battery can be checked on a smartphone, tablet or laptop. All settings of the charger can be configured with the VictronConnect app.

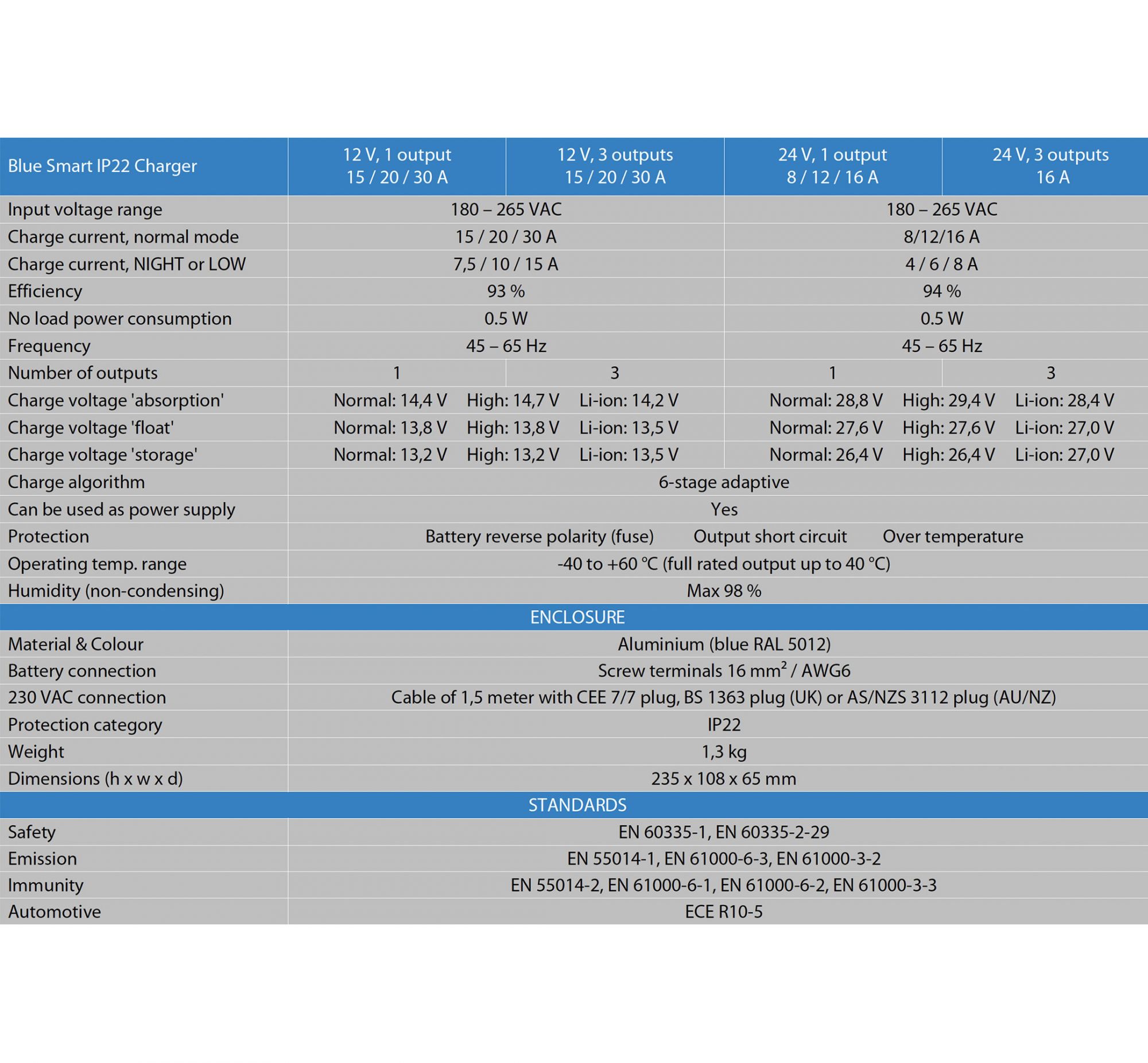

Specifications:
MODEL: 12/20 IP22 - 3 Outputs
INPUT VOLTAGE RANGE: 180-265V AC / 45-65Hz
CHARGE VOLTAGE ABSORPTION:
Absorption: 12V Normal 14,4V, High 14,6V, Li-ion 14,2V
Float: 12V Normal 13,8V, High 13,8V, Li-ion 13,35V
Storage: 12V Normal 13,2V, High 13,8V, Li-ion 13,5V
CHARGE CURRENT: 20 A
WEIGHT kg (lbs): 1.4 (3.1)
SIZE: 235 x 108 x 65 mm (9.2 x 4.2 x 2.6 inches)
For further information, please refer to the technical datasheet.
