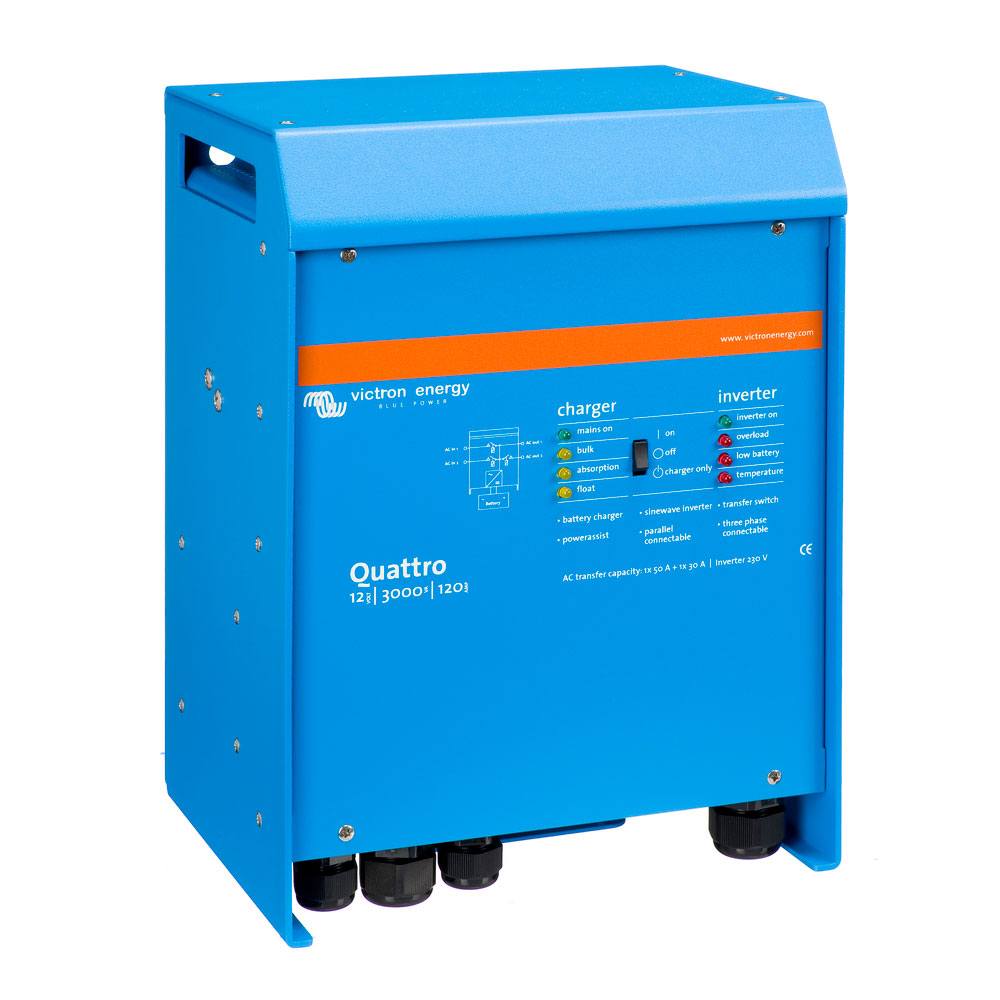

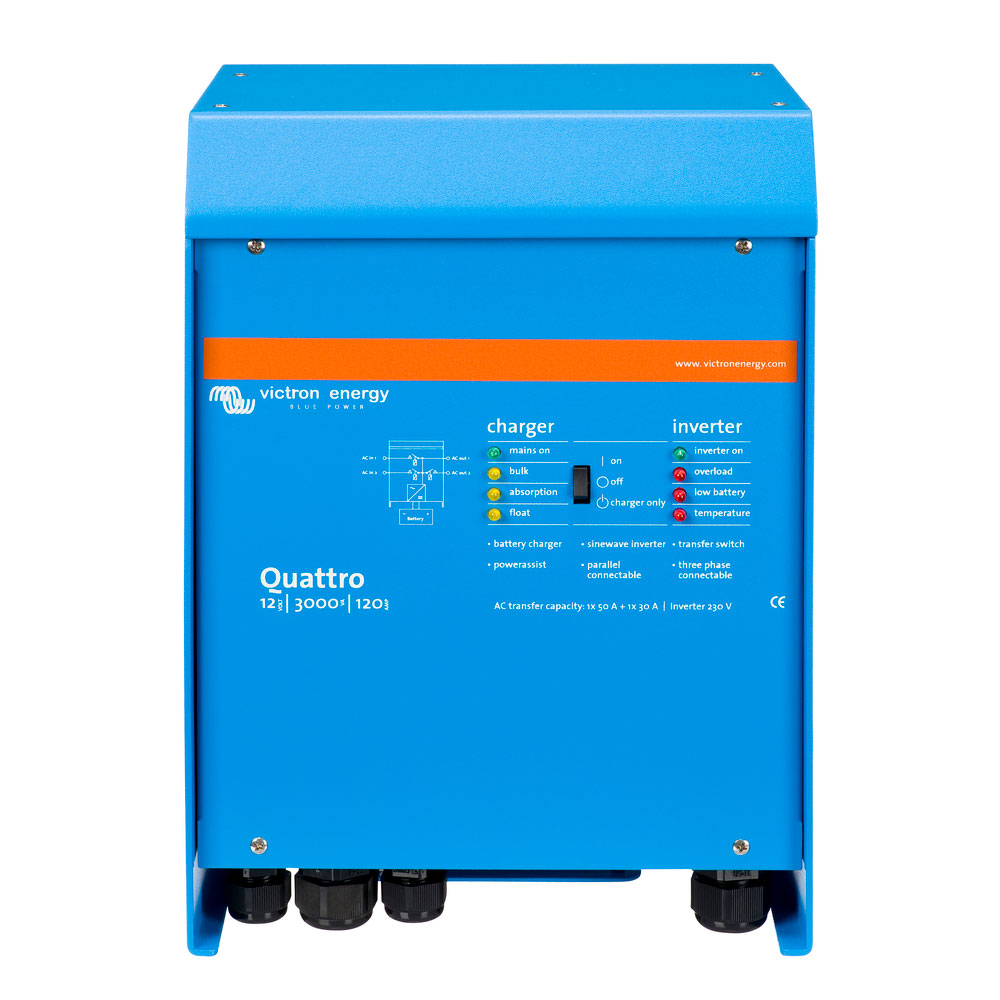

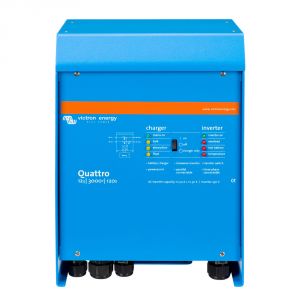

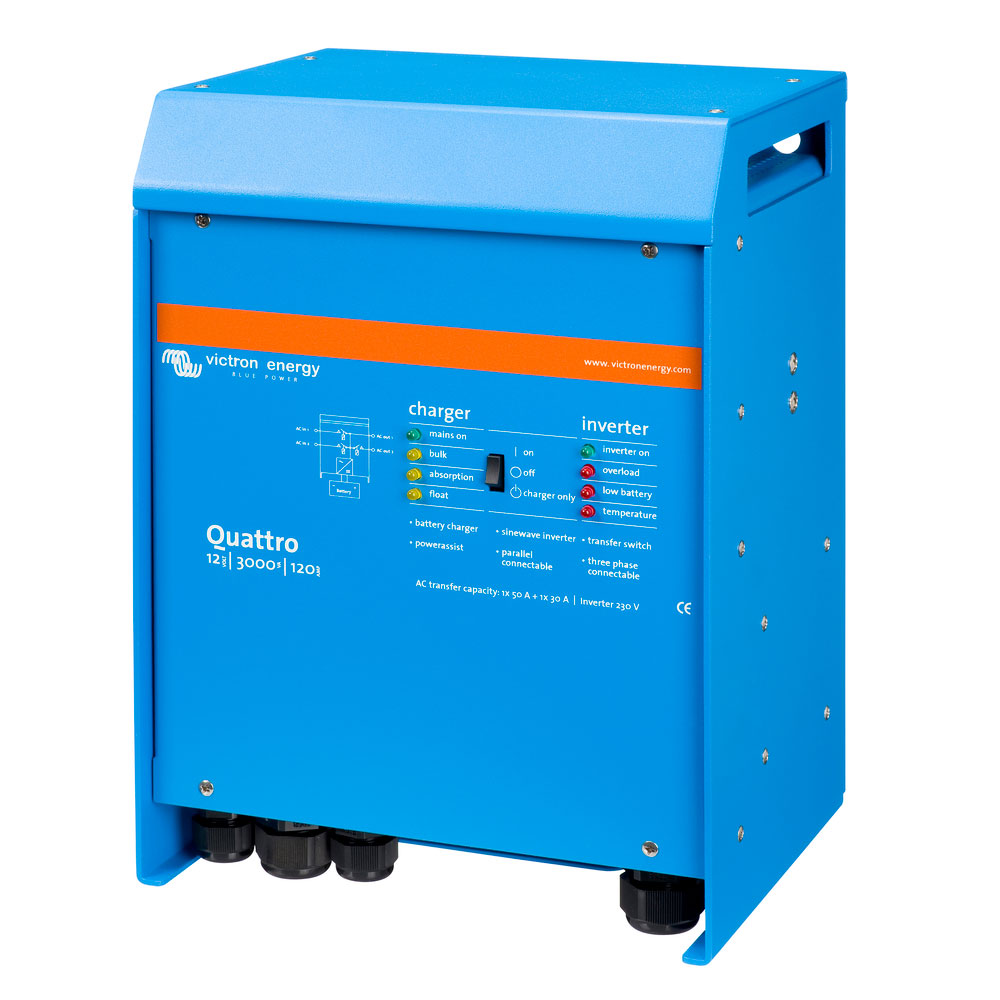

Victron Energy 12V QUATTRO 12/3000/120-50-50 Series Inverter / Battery Charger: Inverter 12V 3000W - Battery Charger 12V 120A.
Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for example shore-side power and a generator, or two generators: the Quattro will automatically connect to the active source.
Two AC outputs
The main output has no-break functionality. In the event of a grid failure, or shore or generator power being disconnected, the Quattro takes over the supply to the connected loads. This happens so fast (less then 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC source is available. Loads that should discharge the battery, like a water heater for example can be connected to this output.
Virtually unlimited power thanks to parallel operation
Up to 10 Quattro’s can operate in parallel. Ten units 24/5000/120, for example, will provide 40kW / 50kVA output power and 1200 Amp charging capacity.
Three phase capability
Three units can be configured for three-phase output and up to 6 sets of three units can be parallel connected to provide 75kW / 90kVA inverter power and more then 2000 Amp charging capacity.
Power Control - Dealing with limited generator, shore-side or grid power
The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore-side supply (16A per Quattro at 230 VAC). A current limit can be set for both AC inputs. The Quattro will then take account of the other AC loads and use whatever is spare for charging, thus preventing the generator or shore supply from being overloaded.
PowerControl / PowerAssist: Yes
Integrated Transfer switch: Yes
AC inputs (2x): Input voltage range: 187-265VAC Input frequency: 45–65Hz
Power factor: 1
Maximum feed through current (A): 2x 50
Dimensions (hxwxd): 362x258x218
Input voltage range (V DC): 9,5–17V 19-33V 38-66V
Output: Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA): 3000
Cont. output power at 25°C (W): 2400
Cont. output power at 40°C (W): 2200
Cont. output power at 65°C (W): 1700
Peak power (W): 6000
Maximum efficiency (%): 93
Zero load power (W): 20
Zero load power in AES mode (W): 15
Zero load power in Search mode (W): 8
Charge voltage 'absorption' (V DC): 14,4
Charge voltage 'float' (V DC): 13,8
Storage mode (V DC): 13,2
Charge current house battery (A): 120
Charge current starter battery (A): 4 (12V and 24V models only)
Battery temperature sensor: Yes.
