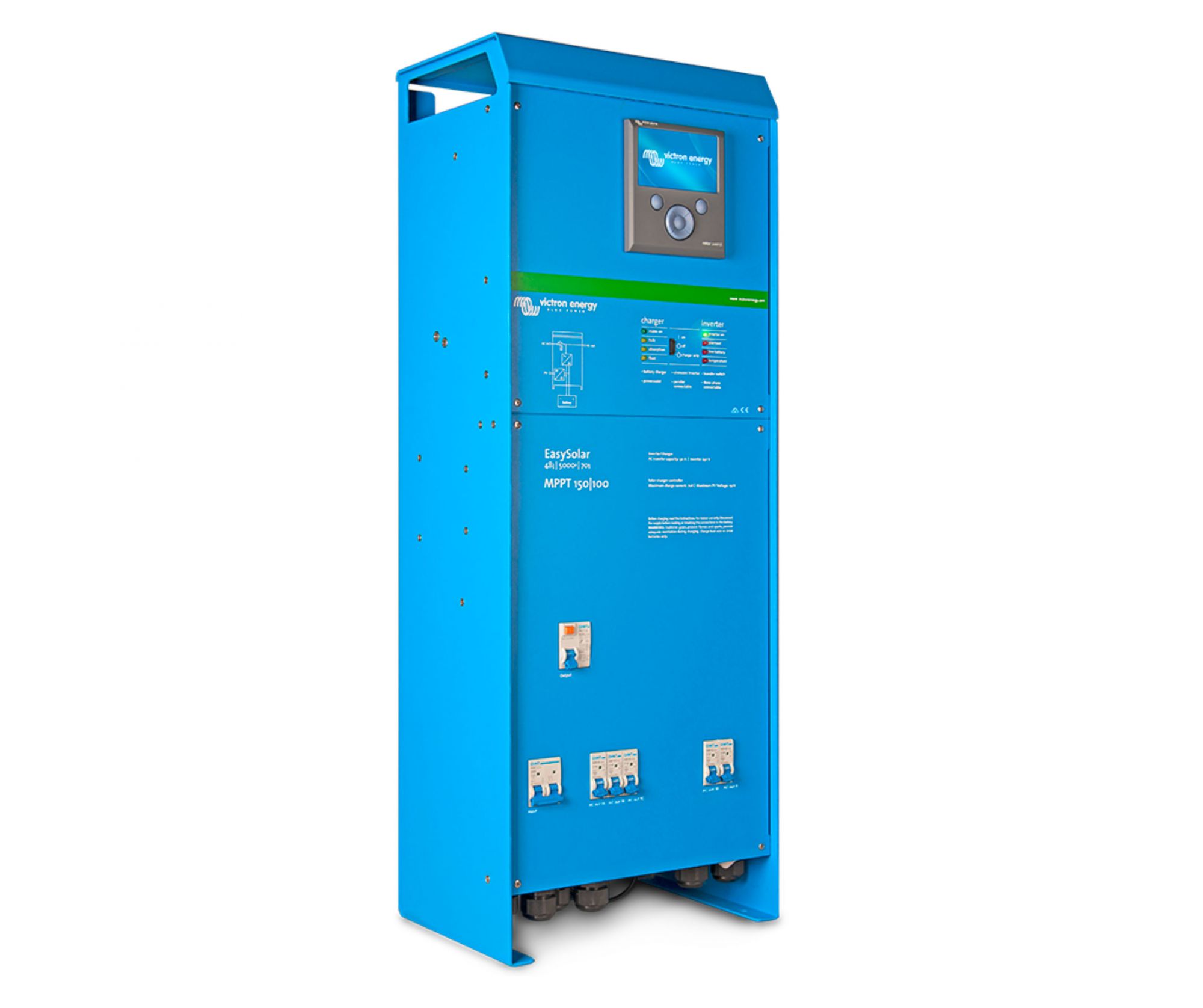

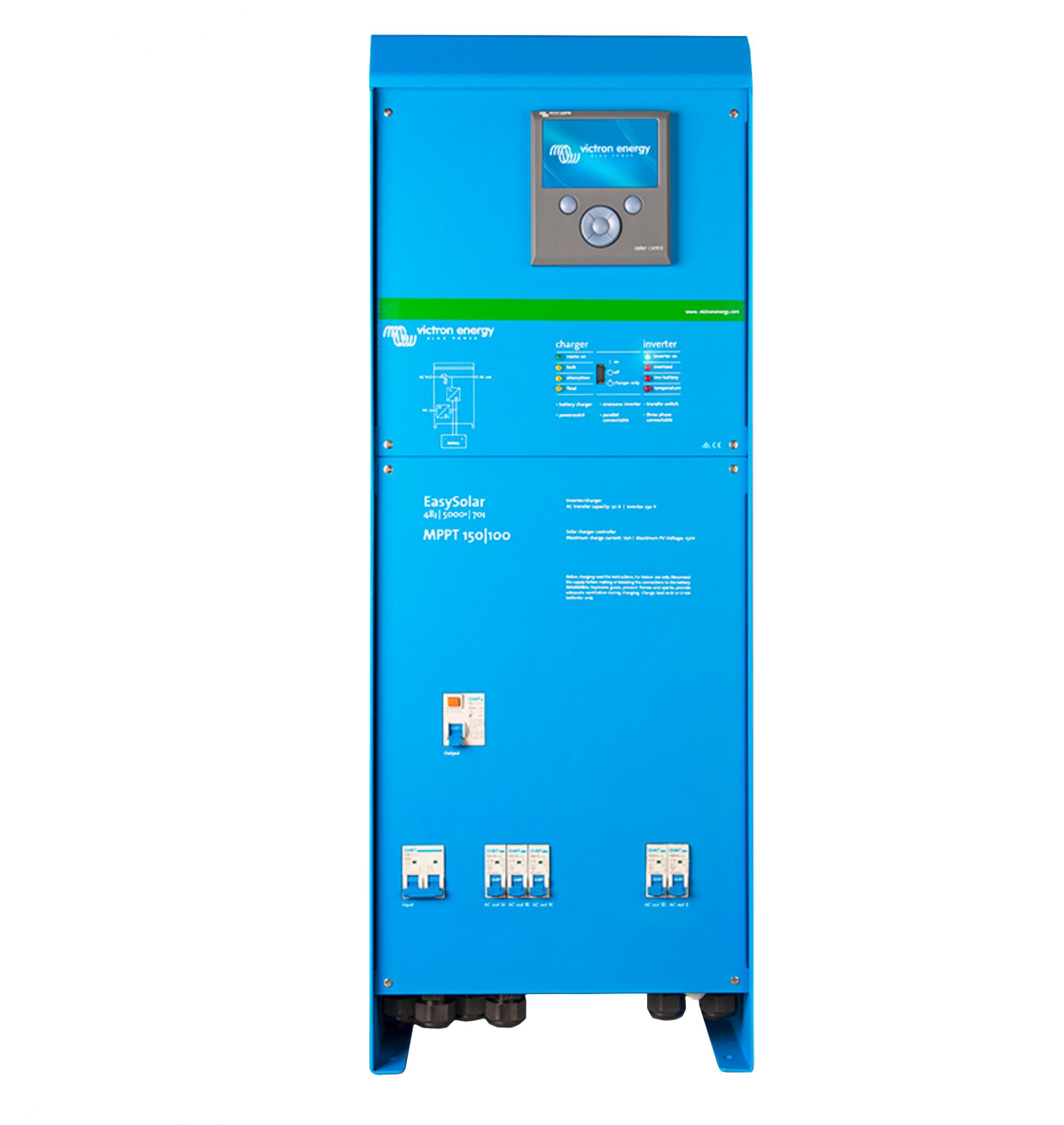

Victron Energy 24V EasySolar Inverter 24/3000/70 Battery Charger 24V 70A with MPPT Charger #UF69860T
Victron Energy 24V EasySolar Inverter 24/3000/70 Battery Charger with MPPT Solar Charger Controller: Inverter 24V 3000W - Battery Charger 24V 70A.
• The EasySolar combines a MPPT solar charge controller, an inverter/charger and AC distribution in one enclosure.
• The product is easy to install, with a minimum of wiring.
• Three models are available: 12 or 24 V with 1600 or 3000 VA inverter. The batteries can be charged with solar power (BlueSolar MPPT) and/or with AC power (inverter/charger) from the utility grid or a genset.
• Several software programs (Assistants) are available to configure the system for various grid interactive or stand-alone applications.
• Unique PowerAssist© technology protects the utility or generator supply from being overloaded.
Integrated Transfer switch: 50A
Dimensions (hxwxd): 810x258x218mm
Input voltage range (V DC): 19-33V
Output: Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA): 3000
Cont. output power at 25°C (W): 2400
Cont. output power at 40°C (W): 2200
Cont. output power at 65°C (W): 1700W
Peak power (W): 6000
Maximum efficiency (%): 94
Zero load power (W): 20
Zero load power in Search mode (W): 10
Charge voltage 'absorption' (V DC): 28.8
Charge voltage 'float' (V DC): 27.6
Storage mode (V DC): 26.4
Charge current house battery (A): 70
Battery temperature sensor: Yes
SOLAR CHARGER CONTROLLER
Model: MPPT 100/70-MC4
Maximum output current:70 A
Maximum PV power: 2000W
Maximum PV open circuit voltage: 150V
Maximum efficiency: 98%
Self-consumption: 10 mA
Charge voltage 'absorption', default setting: 28.8V
Charge voltage 'float', default setting: 27.6V
