Description

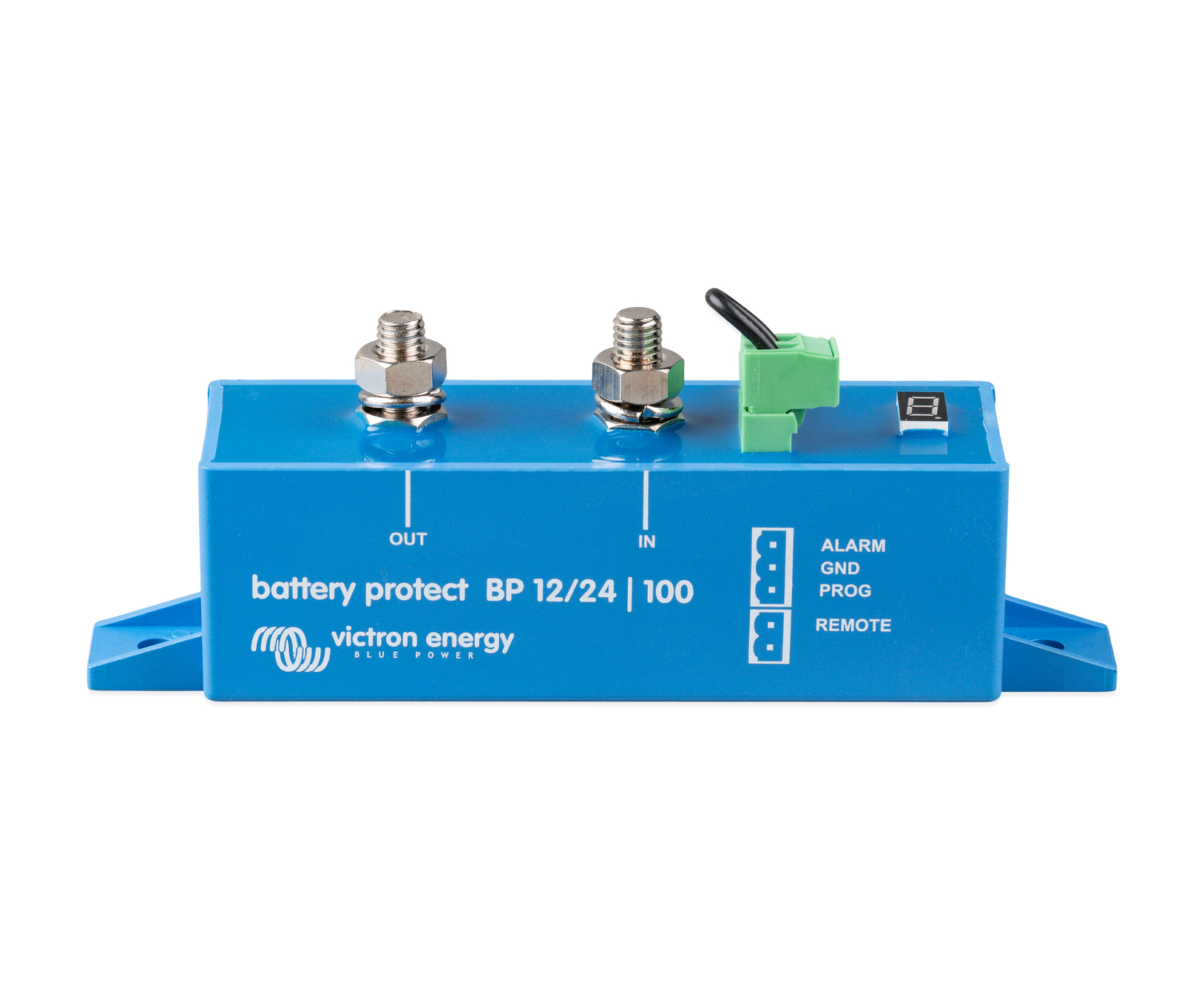

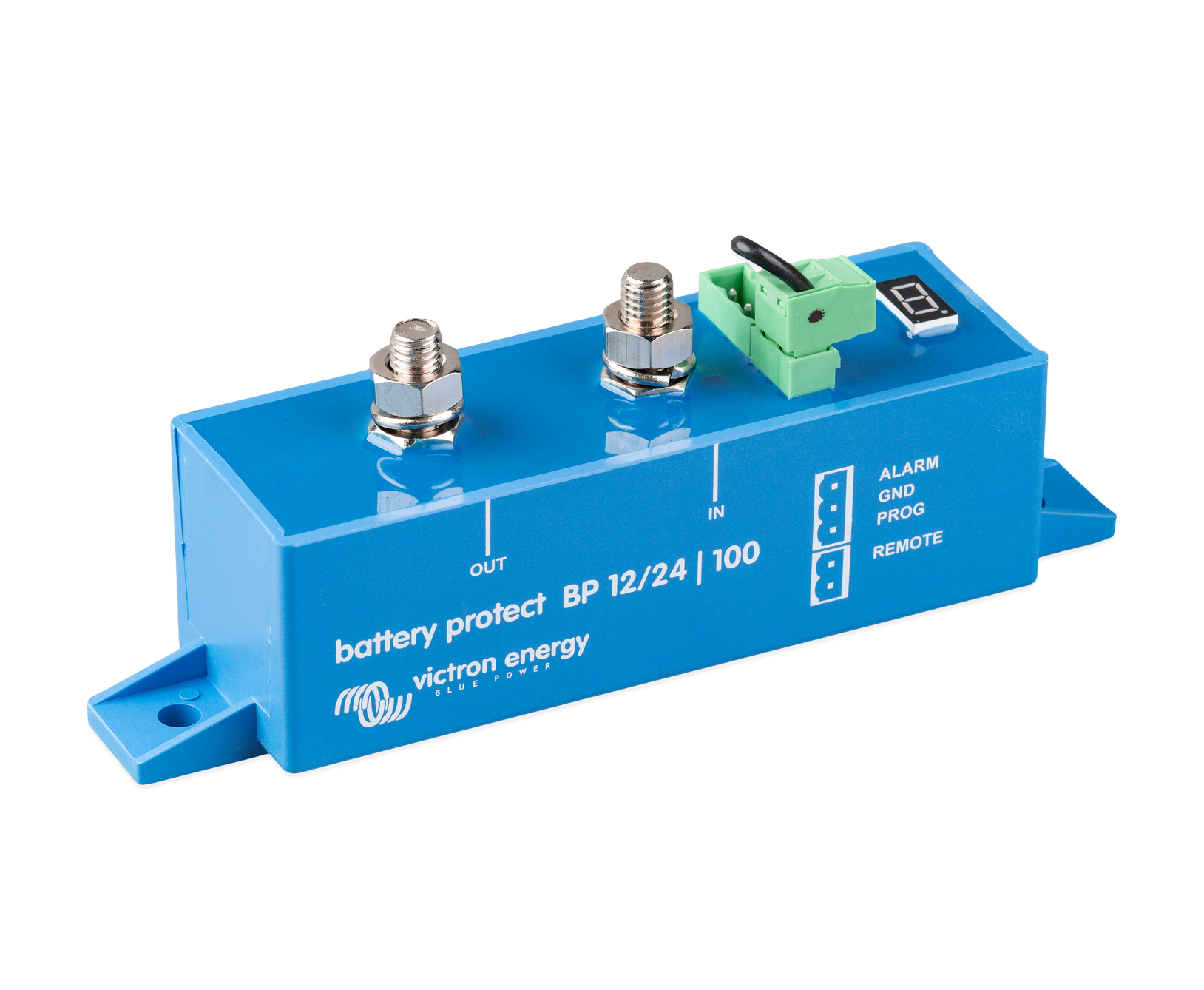

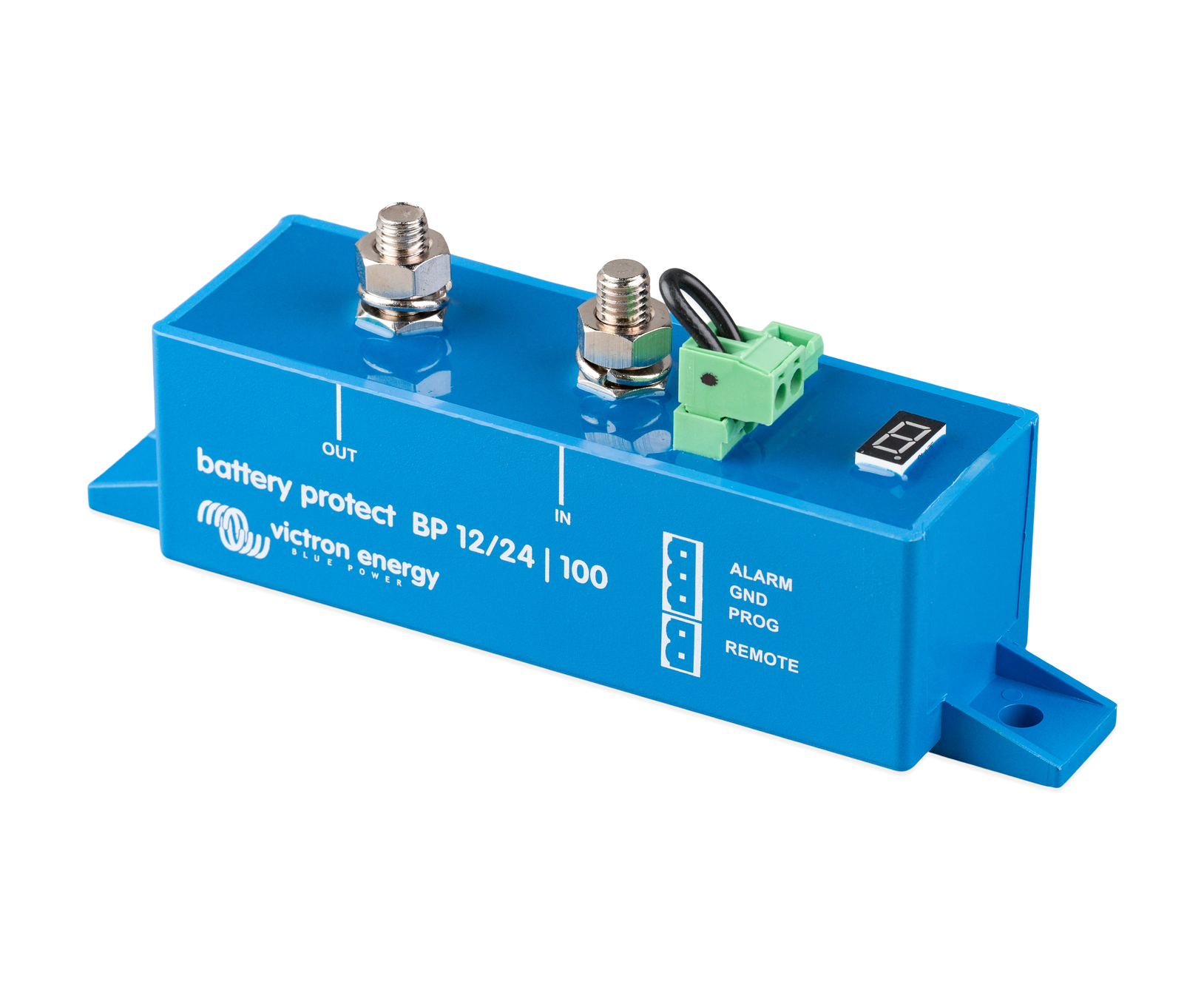

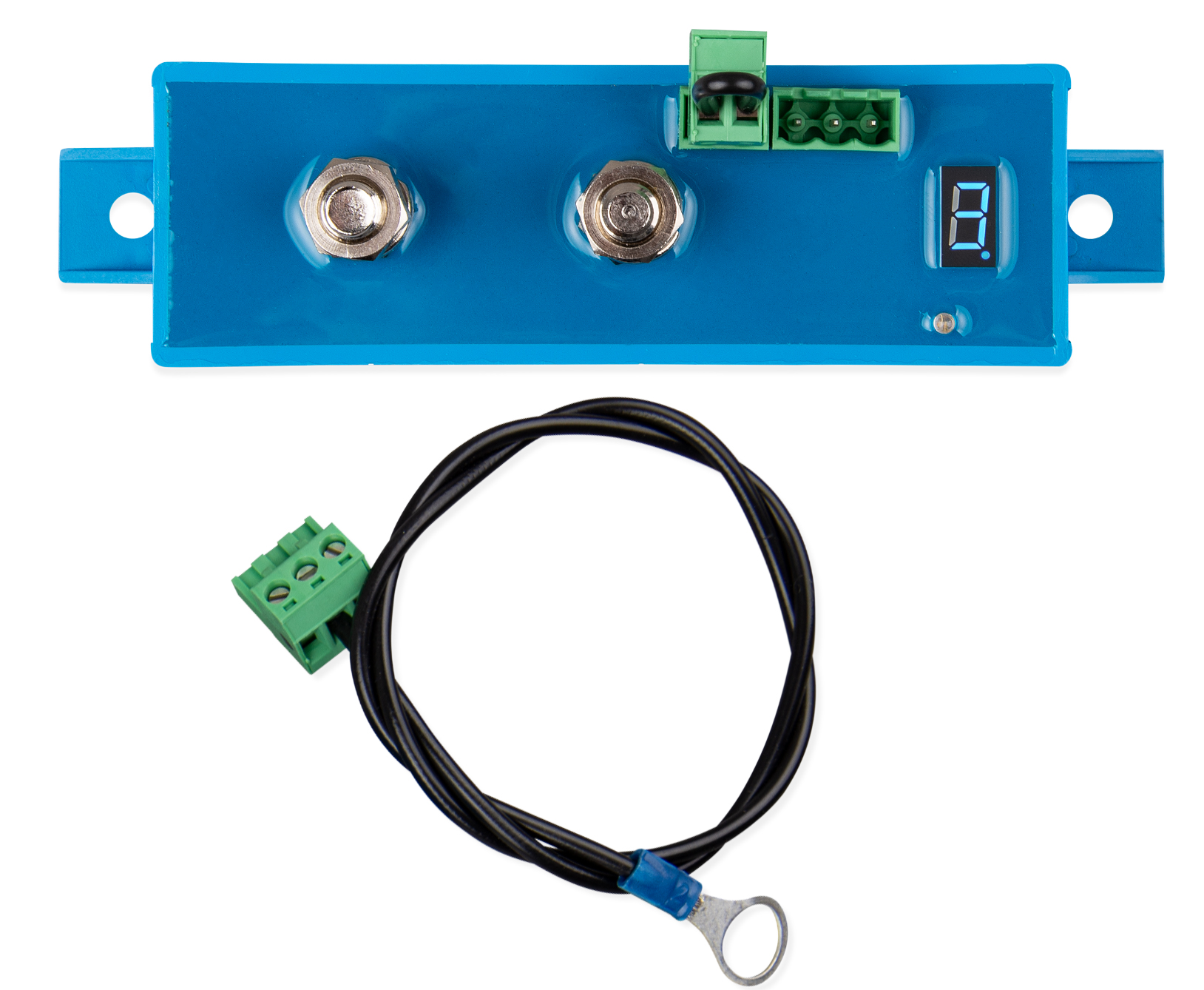

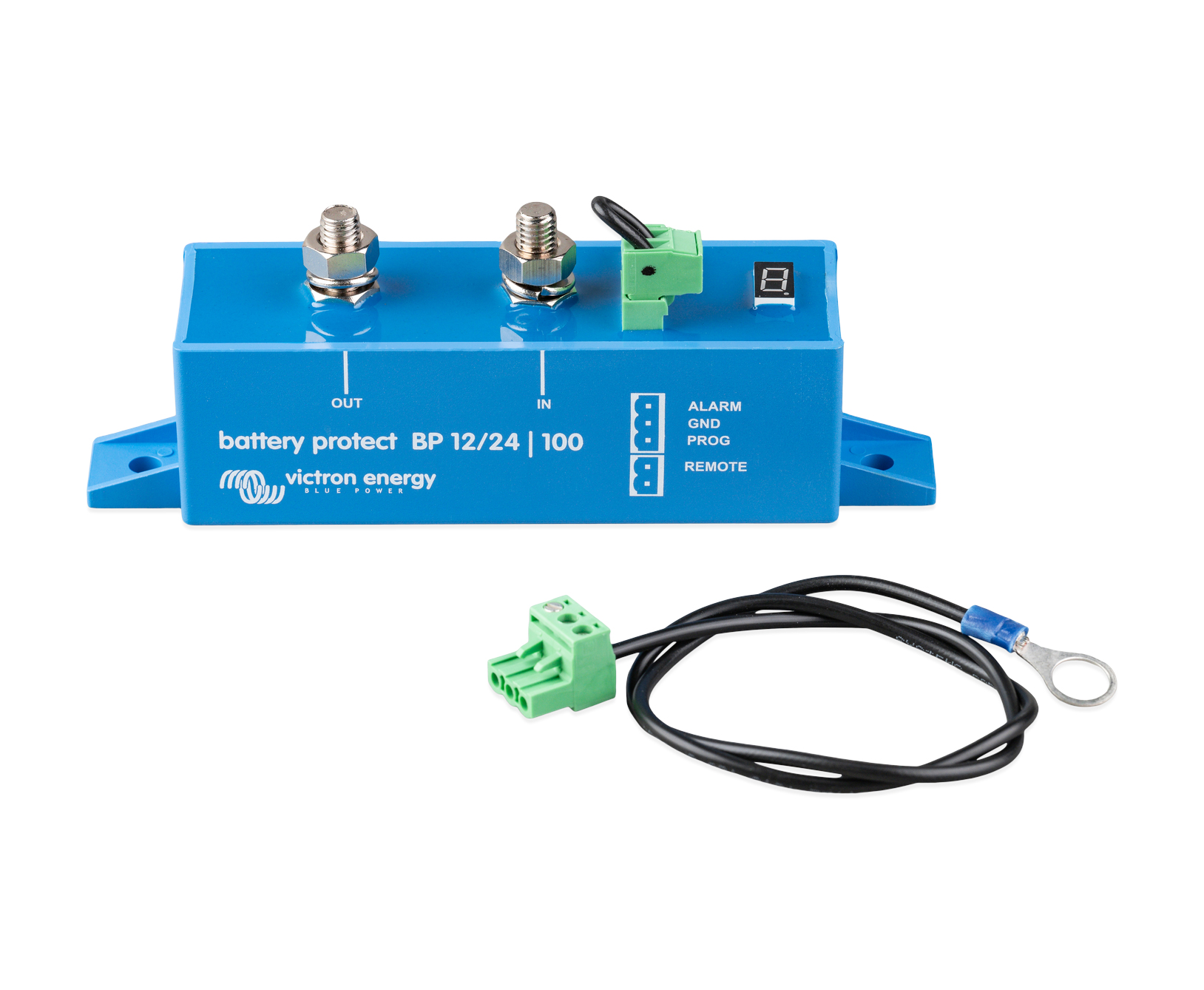

Victron Energy BP-100 Smart Battery protection 12/24V 100A
The Victron battery protection disconnects the battery from non essencial loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
The BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the Battery terminal to the Load terminal. In case of use with a load, the battery connects to the Battery terminal, and in case of use with a charger, the charger connects to the Battery terminal.
Specifications:
Model: BP-100 Smart;
Max continuous current: 12/24V 100A;
Peak current: 600A;
Operating Voltage range: 6-35V;
Load disconnection: 1 min;
Dimensions: 59x42x115 mm (2.4x1.7x4.6 inches);
Weight: 0.6 kg (1.3 lbs).
