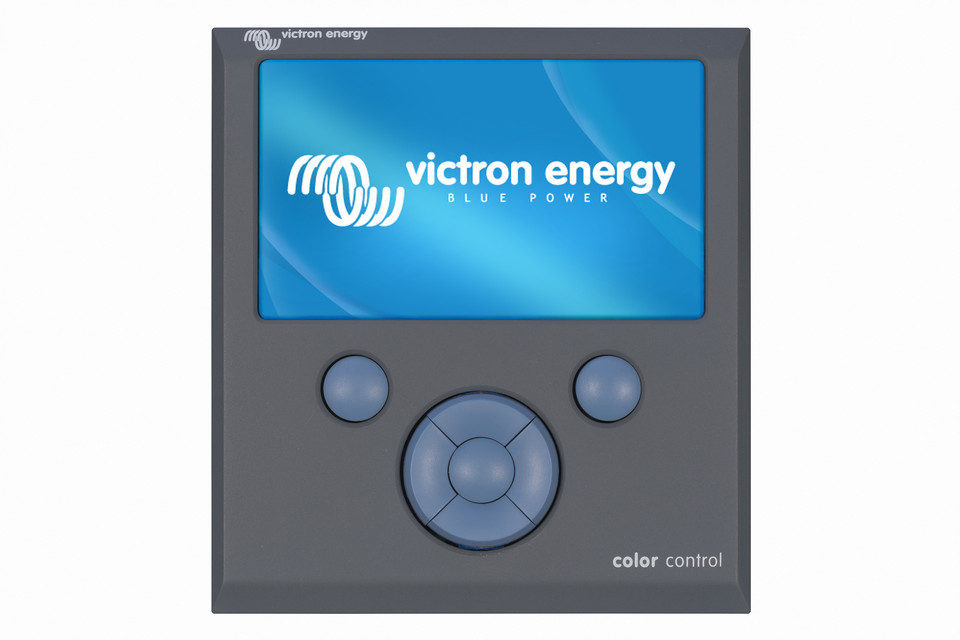

The Color Control GX is the communication-centre of your installation. It offers at-a-glance live information, and lets you control all products connected to it. Full system control is gained - almost anywhere in the world - by accessing your Color Control GX using our free-to-use Victron Remote Management Portal (VRM).

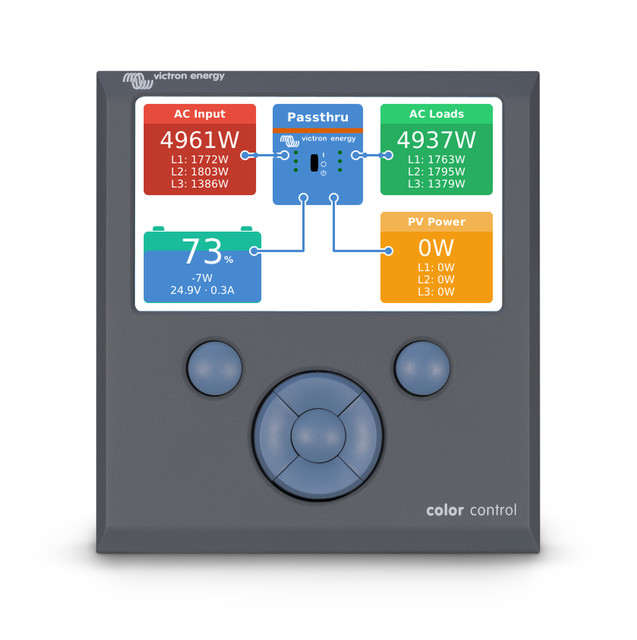

At a single touch, Color Control GX provides an instant overview of your system: battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator.

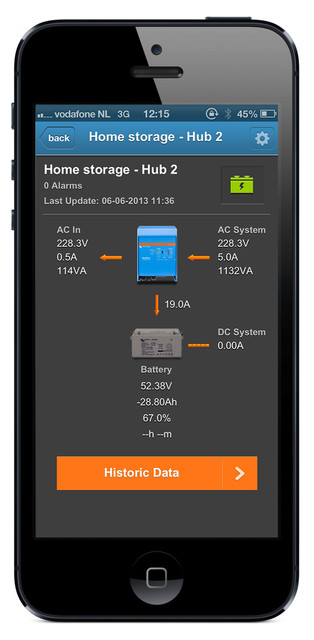

Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login - from anywhere, at anytime. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information.
The Color Control GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance at dead of night.

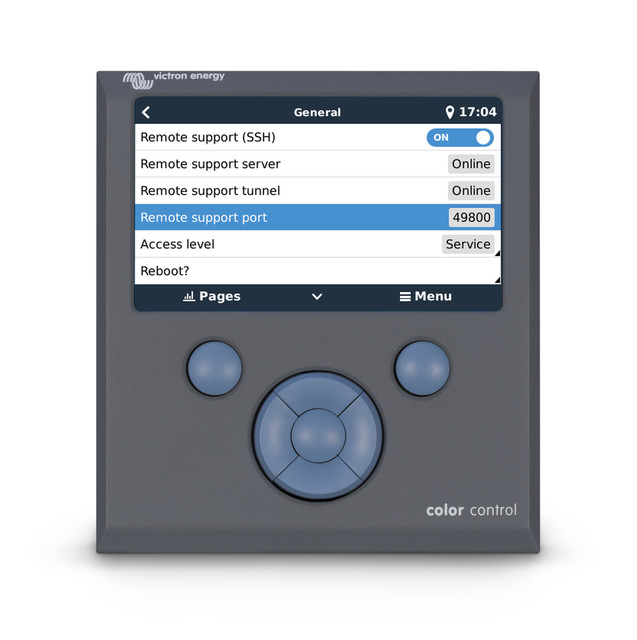

A Remote Console feature is available. It's like carrying the front face of your CCGX control panel around on your phone, or other device.
The Color Control GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption - saving you money.
Planning a trip? Remote monitoring of your Color Control GX allows you to make sure your boat or motorhome are ready to go. Color Control GX also allows you to talk to connected equipment from other manufacturers.
Power supply voltage range 9 – 70V DC
Current draw 12V DC - 24V DC - 48V DC
Switched off 0mA - 0mA - 0mA
Display off 140mA - 80mA - 40mA
Display at minimum intensity 160mA - 90mA - 45mA
Display at maximum intensity 245mA - 125mA - 65mA
Potential free contact 3A / 30V DC / 250V AC (Normally open)

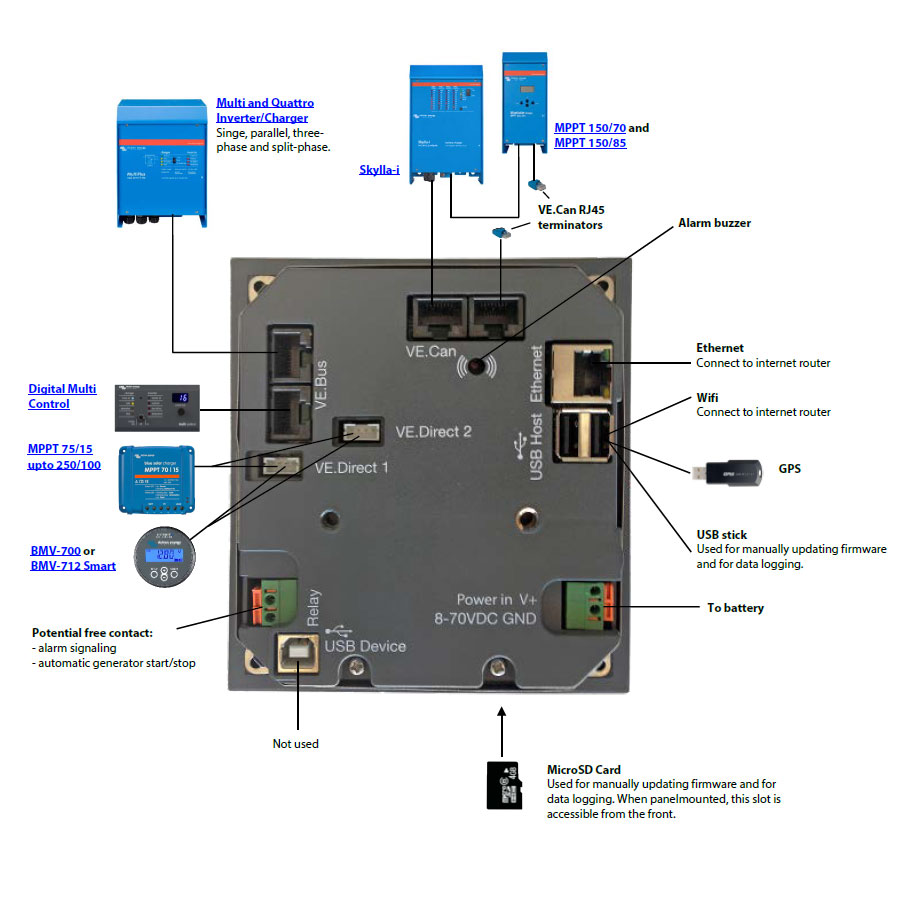

VE.Direct: 2 separate VE.Direct ports – isolated
VE.Can: 2 paralleled RJ45 sockets – isolated
VE.Bus: 2 paralleled RJ45 sockets – isolated
USB: 2 USB Host ports – not isolated

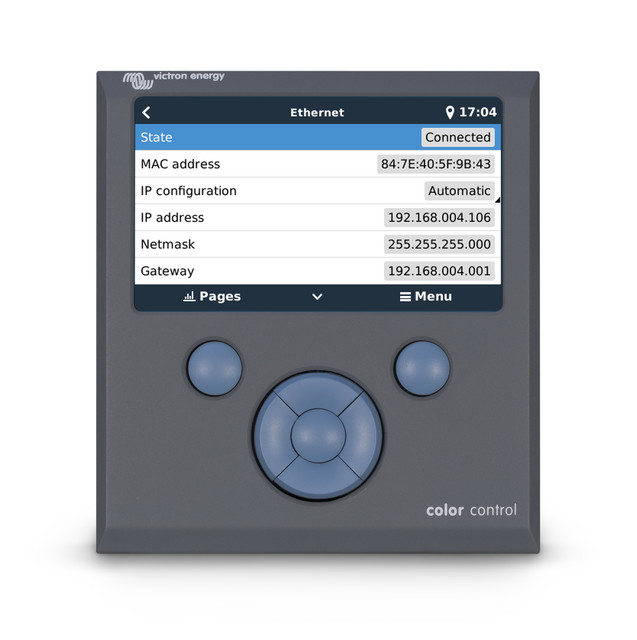

Ethernet: 10/100/1000MB RJ45 socket – isolated except shield
3rd party interfacing
Modbus-TCP: Use Modbus-TCP to monitor and control all products connected to the Color Control GX
JSON: Use the VRM JSON API to retrieve data from the VRM Portal
Outer dimensions (h x w x d): 130 x 120 x 28mm
Operating temperature range: -20 to +50°C
Safety: EN 60950
EMC: EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2
