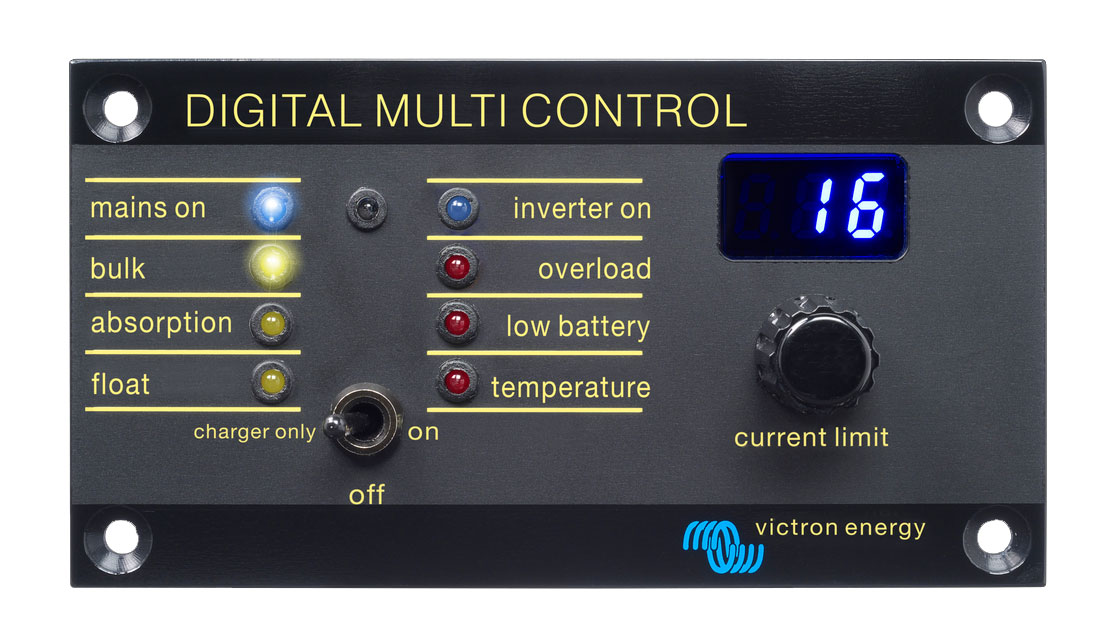

Digital Multi Control Panel 200/200A
This panel is intended both for Multis and Quattros. It allows PowerControl and PowerAssist current limit setting for two AC sources: a generator and shore side current for example. Setting range: up to 200 Amps. The brightness of the LEDs is automatically reduced during night time.
The DMC is a remote panel designed to work with all Multis/Quattro’s and Multi/Quattro systems.
This includes stand alone, parallel and 2-3 phase configurations. Both VE.Bus and non VE.Bus systems are supported.
With the DMC a separate shore current and generator current can be set.
When used in an extended VE.Bus system one can even set up to 4 different shore currents.
For VE.Bus systems, the DMC will automatically adapt the adjustable range to match with the
The DMC is used to remotely set up to four (five including the generator functionality) different input currents, read out the status of your system and turn on and off the Multis or Quattro’s.
