Description

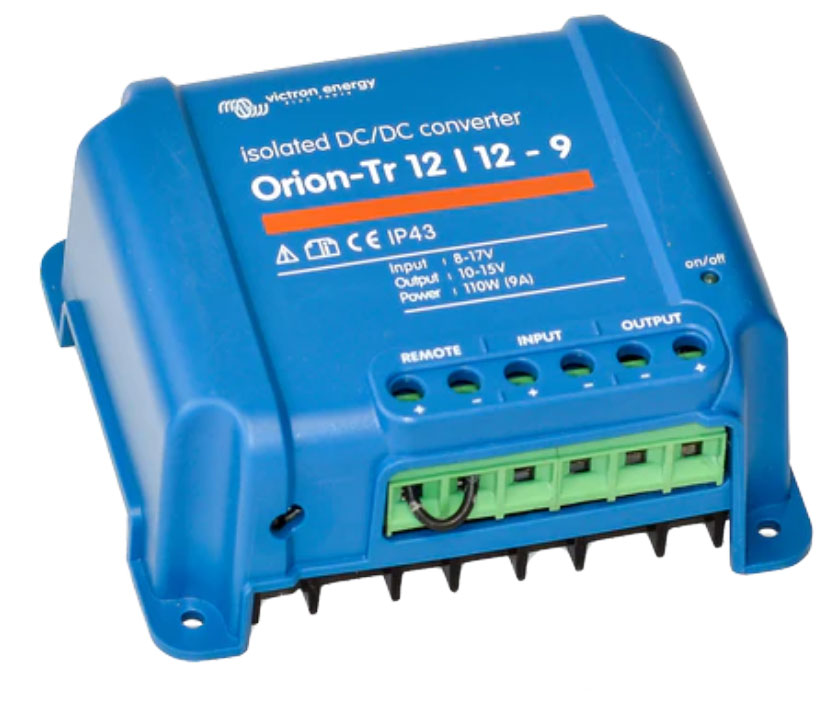

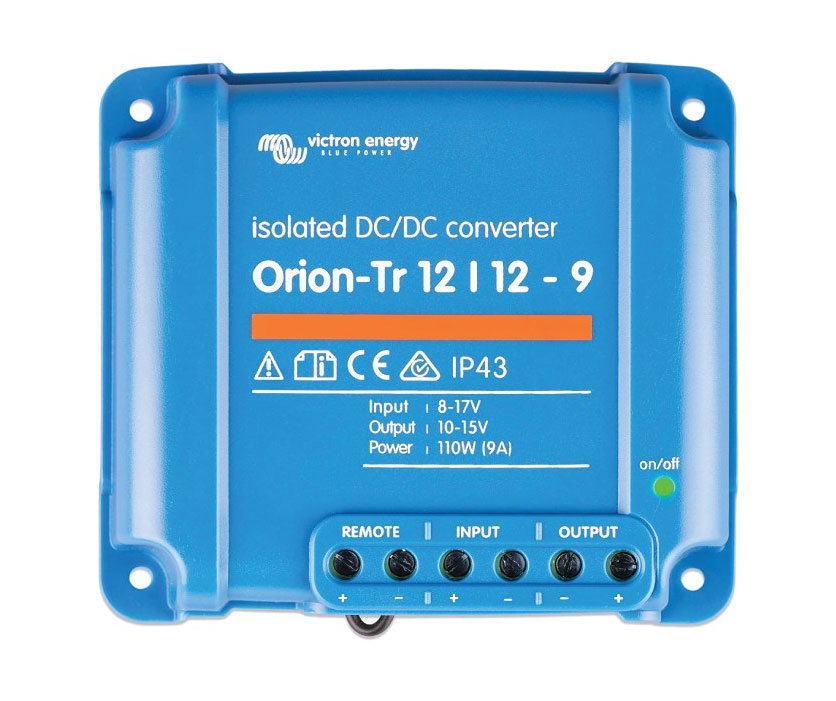

Victron Energy Orion-Tr 12/12V 9A Converter DC-DC Charger Isolated
Adjustable output voltage: can also be used as a battery charger : for example to
charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output
current: an unlimited number of units can be connected in parallel.
High temperature protected: the output current will reduce at high ambient
temperature.
IP43 protection: when installed with the screw terminals oriented downwards.
Screw terminals: no special tools needed for installation.
Input fuse (not replaceable): on 12V and 24V input models only.
Features:
Model Orion-Tr 12/12-9
Code 20396U
Input Voltage range 8-17 VDC
Output voltage VDC 10-15
Max output current 12,5
Temperature Control 87%
Size HxWXD 100x113x47mm (3.9x4.5x1.9")
Weight 0,6kg (1.3lbs)
