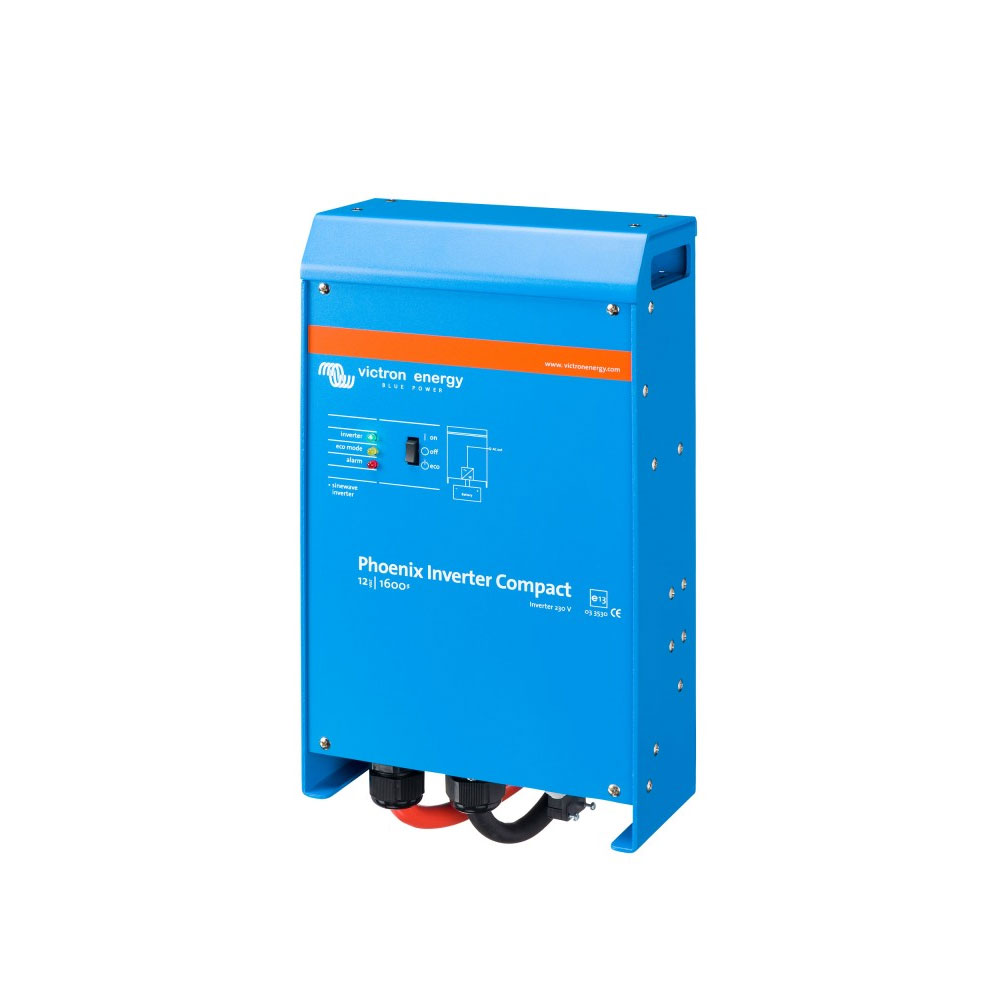

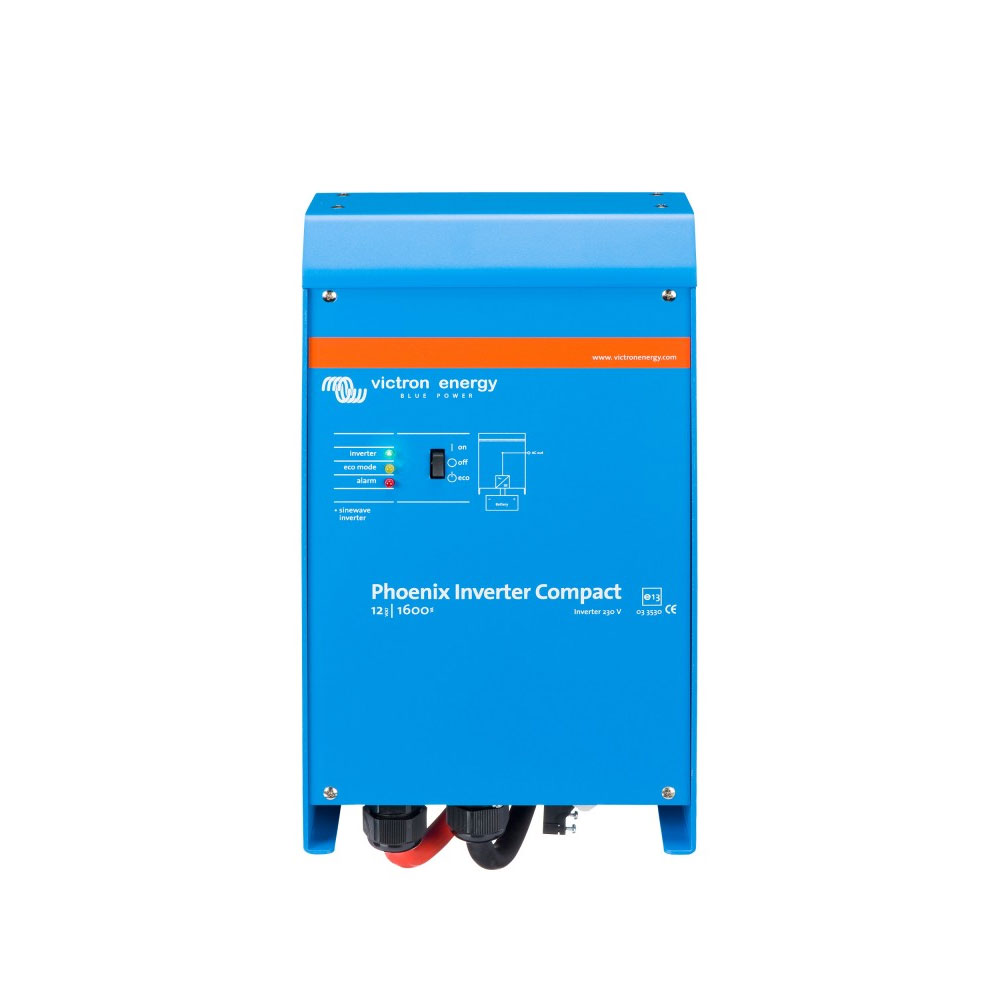

Victron Energy Inverter Phoenix C12/1600 1600W 12V .
Phoenix inverters from 1200 VA
Developed for professional duty, Phoenix pure sine inverters are suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. A unique feature of the SinusMax technology is very high start-up power. Phoenix inverters, in fact, are well suited to power up difficult loads such as: refrigeration compressors, electric motors and similar applications. Conventional high frequency technology does not offer such extreme performance.
Aluminium epoxy powder coated case with drip shield, circuit board protection with an acrylic coating, forced cooling with temperature sensors, protection against: output short circuit, overload, low battery
voltage, reverse polarity, reverse voltage on output, input voltage ripple, high temperature.
INPUT VOLTAGE RANGE V DC: 9,5 - 17,0
CONT. OUTPUT POWER* VA: 1600
PEAK POWER W: 3000
MAX. EFFIC.%: 92
WEIGHT kg (lbs): 10 (22)
Size: 375x214x110 mm (14.7x8.4x4.3 inches)
*Continuous output power at 25°C - OUTPUT: 230V AC ± 2% - 50 Hz ± 2%
All models are suitable for parallel (max 6 parallel units) and 3-phase operation.
