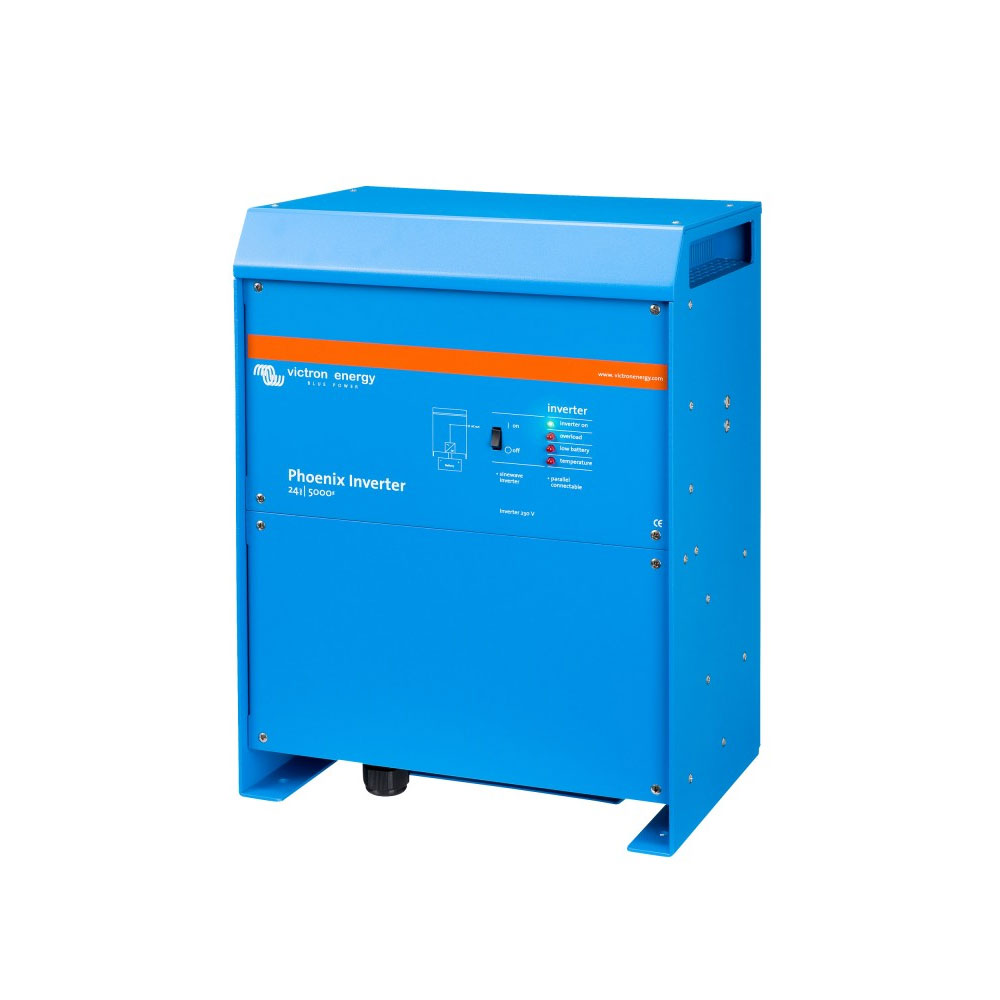

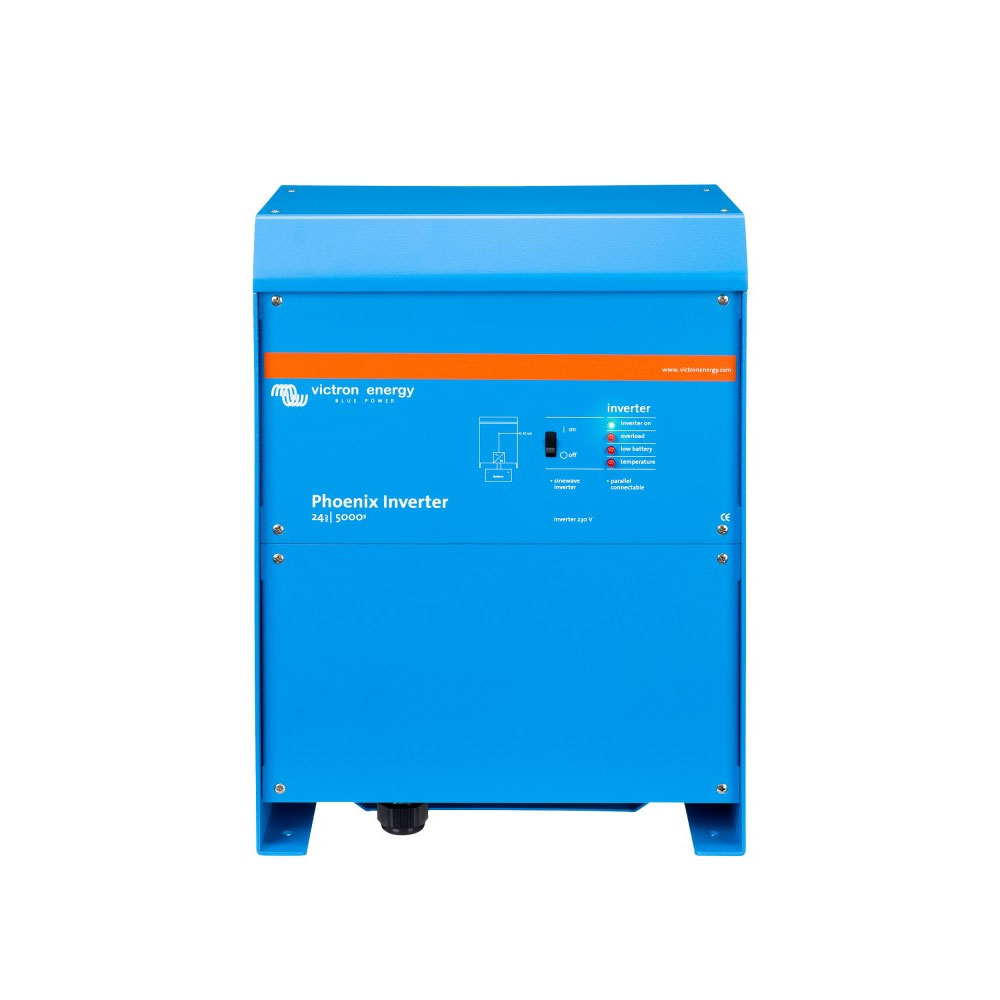

Victron Energy Inverter Phoenix 24/5000 24V 5000W.
Phoenix inverters from 1200 VA
PHOENIX SERIES
Developed for professional duty, Phoenix pure sine inverters are suitable for the widest range of applications. The design criteria have been to produce a true sine wave inverter with optimised efficiency without compromise in performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. A unique feature of the SinusMax technology is very high start-up power. Phoenix inverters, in fact, are well suited to power up difficult loads such as: refrigeration compressors, electric motors and similar applications. Conventional high frequency technology does not offer such extreme performance.
Standard features
Aluminium epoxy powder coated case with drip shield, circuit board protection with an acrylic coating, forced cooling with temperature sensors, protection against: output short circuit, overload, low battery voltage, reverse polarity, reverse voltage on output, input voltage ripple, high temperature.
Relay multifunction.
Specifications:
Model: 24/5000
INPUT VOLTAGE RANGE V DC: 19,0 – 33,0
CONT. OUTPUT POWER* VA: 5000
PEAK POWER W: 10000
MAX. EFFIC.%: 94
WEIGHT kg (lbs): 30 (66.1)
Size: 444x328x240 mm (17.5x12.9x9.4 inches)
*Continuous output power at 25°C - OUTPUT: 230V AC ± 2% - 50 Hz ± 2%
All models are suitable for parallel (max 6 parallel units) and 3-phase operation
For further information, please refer to the technical datasheet.
