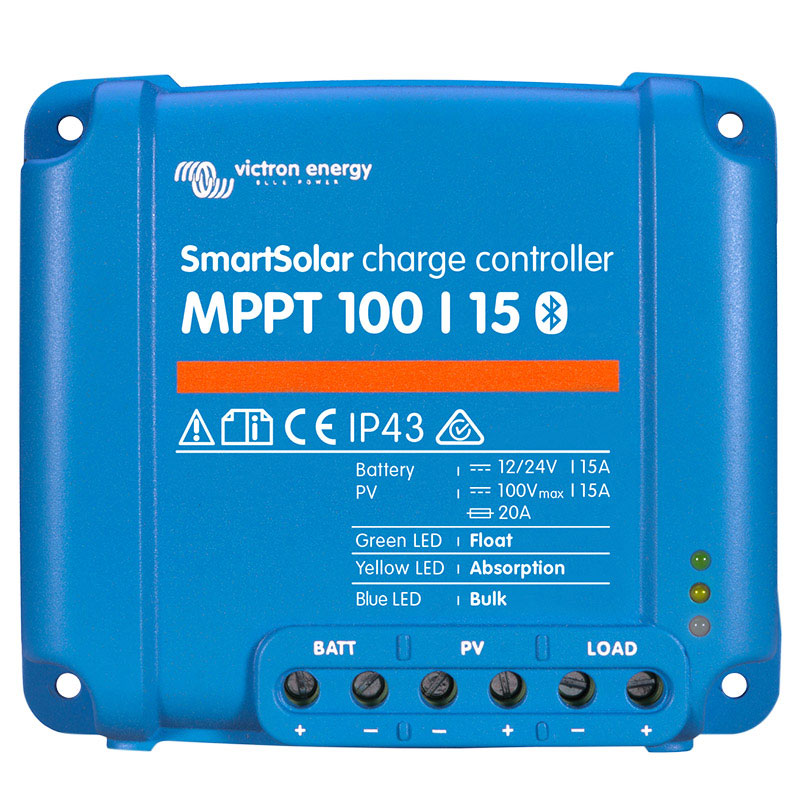

Victron Energy SmartSolar MPPT 100V 15A Solar Charge Controller #UF22401U

Victron Energy  SmartSolar MPPT 100V 15A Solar Charge Controller #UF22401U

Victron Energy SmartSolar MPPT 100V 15A Solar Charge Controller #UF22401U

Victron Energy SmartSolar MPPT 100V 15A Solar Charge Controller.
You Save:
€20.06 (20%)


Victron Energy  SmartSolar MPPT 100V 15A Solar Charge Controller.

• Ultra-fast Maximum Power Point Tracking (MPPT): Especially in case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers
• Load output: Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a preset voltage
• BatteryLife: intelligent battery management. The BatteryLife algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%
• Resin encapsulated electronics
• Day/night timing and light dimming option
• Outstanding conversion efficiency: No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F). No cooling fan
• Advanced Maximum Power Point Detection in case of partial shading conditions: If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP
• Flexible charge algorithm: Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch
• Extensive electronic protection: Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection

Technical Specifications:
Battery voltage: 12/24V auto detection
Maximum output current: 15 A
Maximum PV power: 200W(12V) 400W (24V)
Maximum PV open circuit voltage: 100V
Maximum efficiency: 98%
Self-consumption: 100mA
Operating temperature: -30°C ÷ +60°C
Protection class: IP 43 (electronic components) - IP22 (connections)
Weight kg (lbs): 0,6 (1.3)
Size: 100x113x50 mm (3.9x4.5x2 inches)
