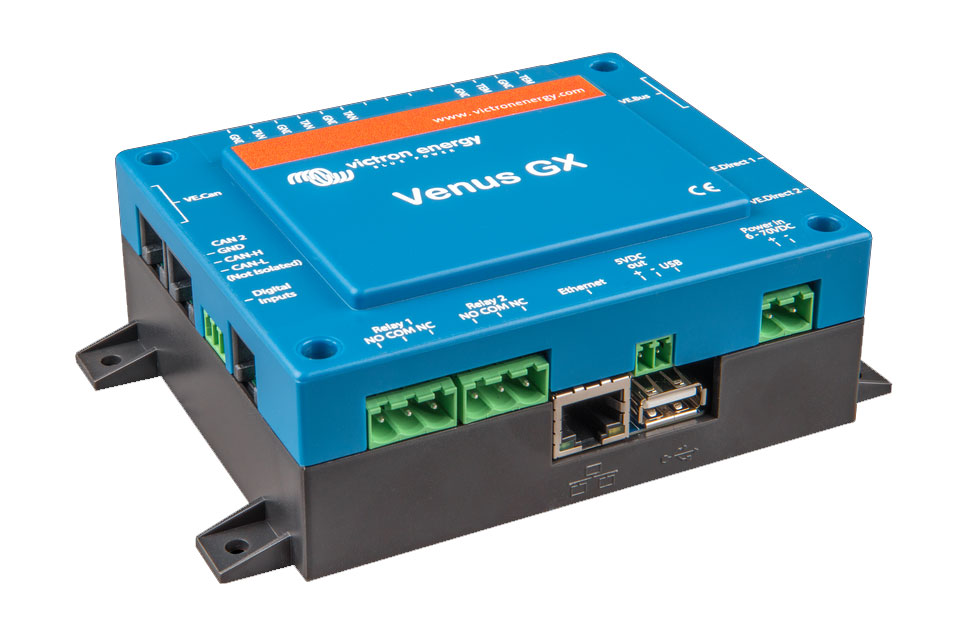

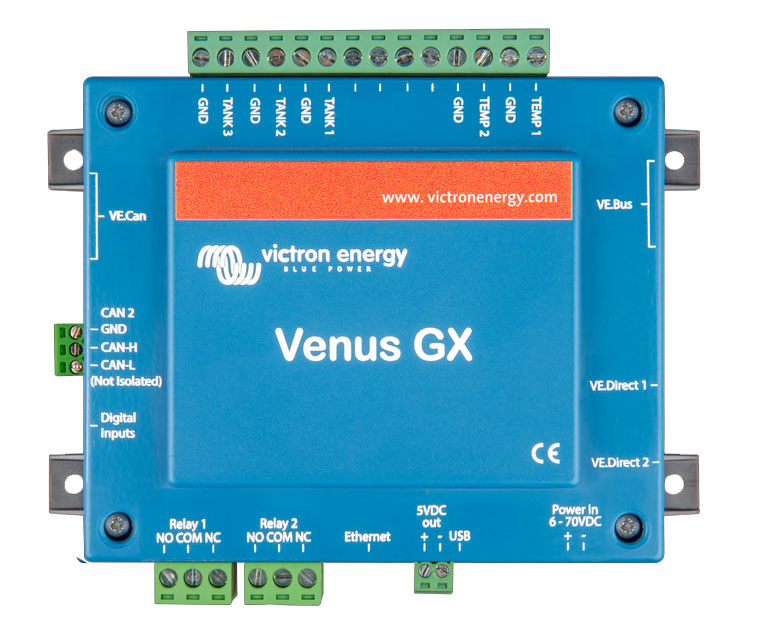

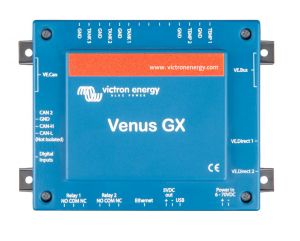

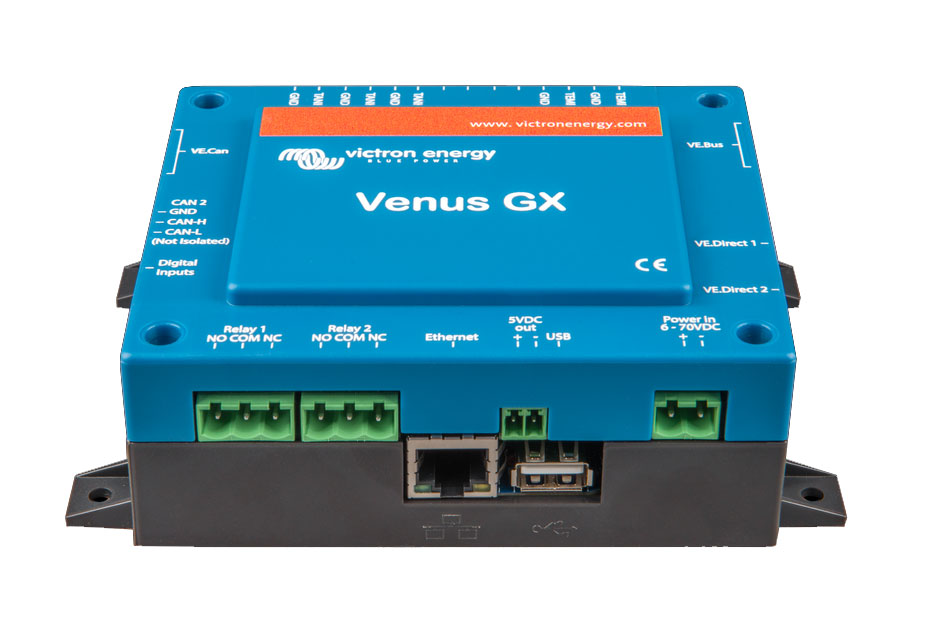

The Venus GX is the communication-centre of your installation. Venus allows you to talk to all components in your system and ensure they are working in harmony. Monitoring of live data, and changing settings is performed by using your smartphone (or other device) via our free-to-use Victron Remote Management Portal (VRM).

As soon as you 'log on' Venus GX provides an instant overview of your system: Battery state of charge; present power consumption; power harvest from PV; power provision from mains/generator.

Victron Remote Management (VRM) provides you with full access to the very extensive controls and settings of all system-components which are connected to either your CCGX or Venus GX. It allows remote user and installer login - from anywhere, at anytime. This powerful application also provides for hassle-free diagnostic checks and analysis of archived information.

The Venus GX can be programmed to auto-start your generator - triggered by low-voltage; high-demand; or battery state of charge. It can be further tailored to delay ignition until the end of 'quiet' periods - avoiding accidental nuisance at dead of night.

Remote Console provides visual access to the live data and settings of your Venus GX ...and because it's remote - you can do that from anywhere in the world.

The Venus GX manages Energy Storage Systems. It keeps back-up batteries at 100% ; kicks-in during power-cuts; and diverts excess (solar) power to self-consumption - saving you money.

Planning a trip? Remote monitoring of your Venus GX allows you to make sure your boat or motorhome are ready to go. Venus GX also allows you to talk to connected equipment from other manufacturers. And with Venus GX you can check the tanks, too.

Specifications:
Power supply voltage range 8 – 70V DC
Current Draw: 210 mA @ 12V / 110 mA @ 24V / 60 mA @ 48V
Communication ports
VE.Direct: 2 separate VE.Direct ports – isolated
VE.Can: 2 paralleled RJ45 sockets – isolated
CAN: 2nd CAN interface – non isolated
VE.Bus: 2 paralleled RJ45 sockets – isolated
USB: 2 USB Host ports – not isolated
Ethernet: 10/100/1000MB RJ45 socket – isolated except shield
WiFi Access Point: Use to connect to Remote Console
WiFi Client: Connect the Venux GX to an existing WiFi network
IO
Potential free contact: NO/COM/NC – 6 A 250 VAC/30 VDC
Tank level inputs: 3 x Configurable for European (0 - 180 Ohm) or US (240 - 30 Ohm)
Temperature level inputs: 2 x Requires ASS000001000
3rd party interfacing
Modbus-TCP: Use Modbus-TCP to monitor and control all products connected to the
Venus GX: JSON Use the VRM JSON API to retrieve data from the VRM Portal
Other
Outer dimensions (h x w x d): 45 x 143 x 96
Operating temperature range: -20 to +50°C
Standards
Safety: EN 60950
EMC: EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2
Automotive: In progress
