Developed for professional duty, Phoenix pure sine inverters is suitable for the widest range of applications. The design criteria were to produce a true sine wave inverter with optimised efficiency without compromising performance. Employing hybrid HF technology, the result is a top quality product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load. A unique feature of the SinusMax technology is a very high start-up power. Phoenix inverters, in fact, are well suited to power difficult loads such as: refrigeration compressors, electric motors and similar applications. Conventional high frequency technology does not offer such extreme performance.
Standard features
Aluminium epoxy coated case with drip shield, circuit board protection with an acrylic coating, forced cooling with temperature sensors, remote connector, battery cables (1.5 m), output short circuit protection, over temperature protection.

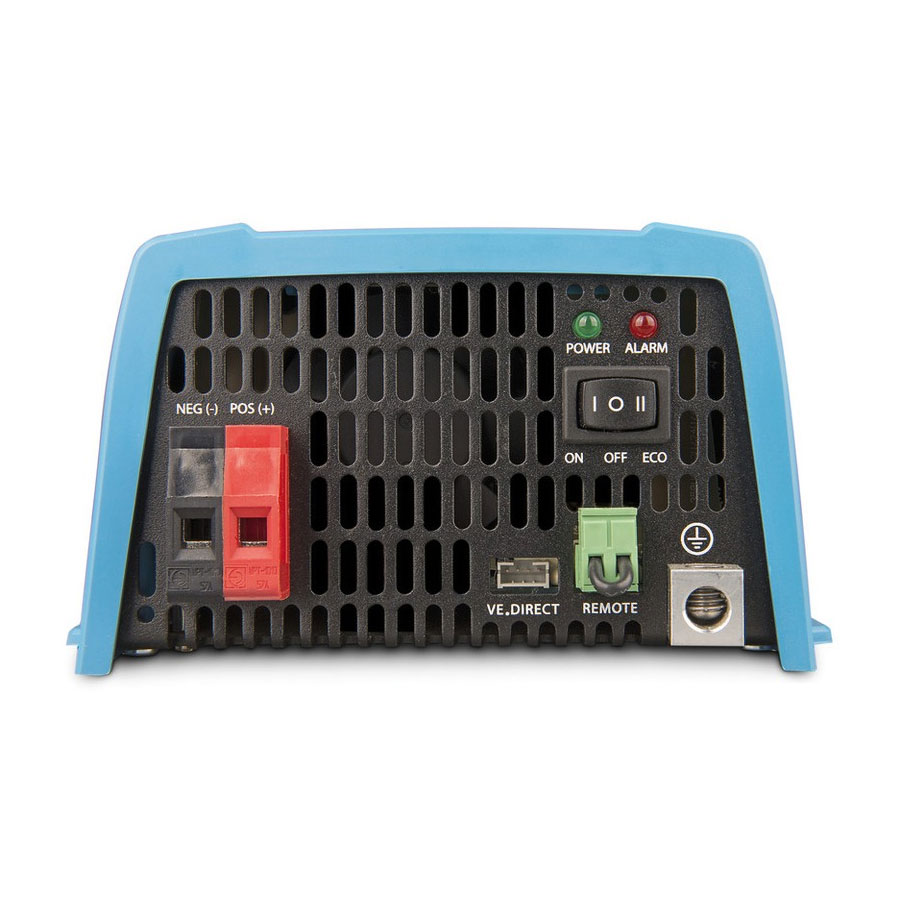

Communication port
The Direct port can be connected to:
• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)
Fully configurable:
• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level
Monitoring:
• In- and output voltage, % load and alarms
Technical Specifications:
Type: 12/250 Direct;
V - DC inlet: 9,2 - 17,3 VDC;
V - AC outlet: 230 ±3%;
Continuous Range: 250W;
Peak Range: 350W;
Efficiency: 87%;
Frequency: 50 Hz;

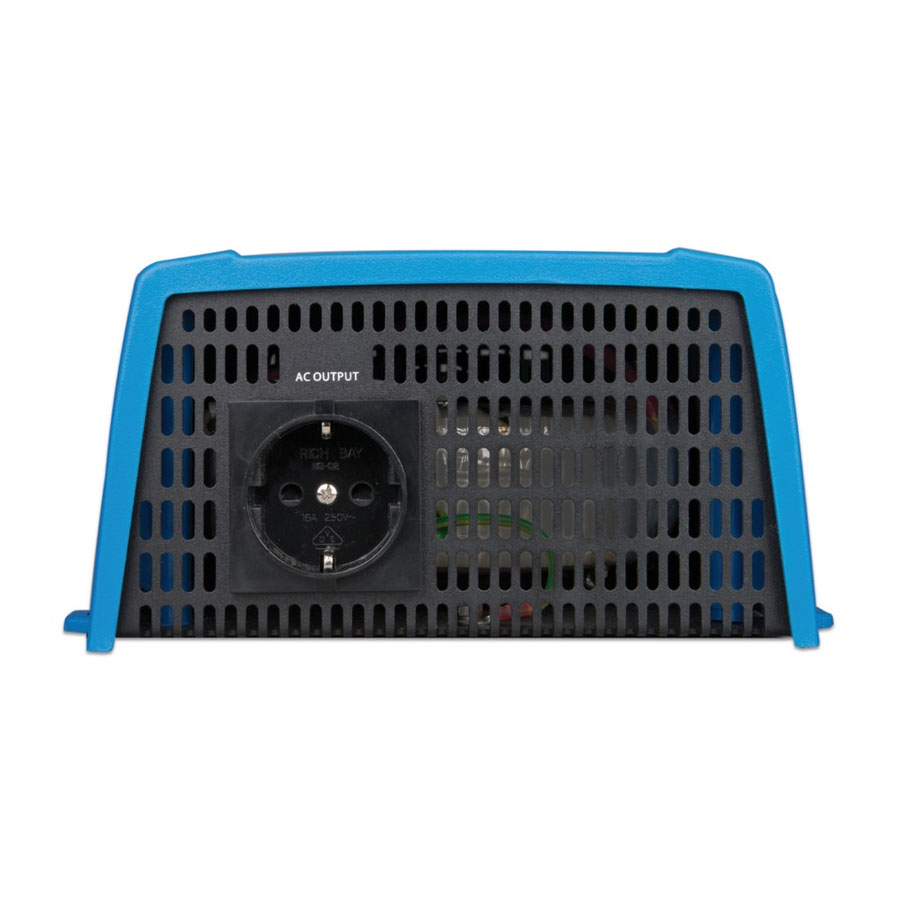

Outlet socket: Schuko;
Size: 86x165x260 mm;
Weight: 2.4 kg (5.3lbs).
