Victron SmartSolar MPPT 150V 35A Solar Charge Controller with Bluetooth UF21680W

Victron Energy SmartSolar MPPT 150V 35A Solar Charge Controller with Bluetooth.
Price:
€179.84
Listing:
€230.56
You Save:
€50.72 (22%)

Description

Victron Energy SmartSolar MPPT 150V 35A Solar Charge Controller

Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra fast MPPT controller will improve energy harvest by up to 30% compared to PWM charge controllers and by up to 10 % compared to slower MPPT controllers.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect the load when the battery has been discharged to a preset voltage.
BatteryLife
Intelligent battery management. The BatteryLife algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%.
Resin encapsulated electronics
Day/night timing and light dimming option
Outstanding conversion efficiency
No cooling fan. Maximum efficiency exceeds 98%. Full output current up to 40°C (104°F). No cooling fan.
Advanced Maximum Power Point Detection in case of partial shading conditions
If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPT’s tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.
Flexible charge algorithm
Fully programmable charge algorithm, and eight preprogrammed algorithms, selectable with a rotary switch.
Extensive electronic protection
Over-temperature protection and power derating when temperature is high. PV short circuit and PV reverse polarity protection. PV reverse current protection.

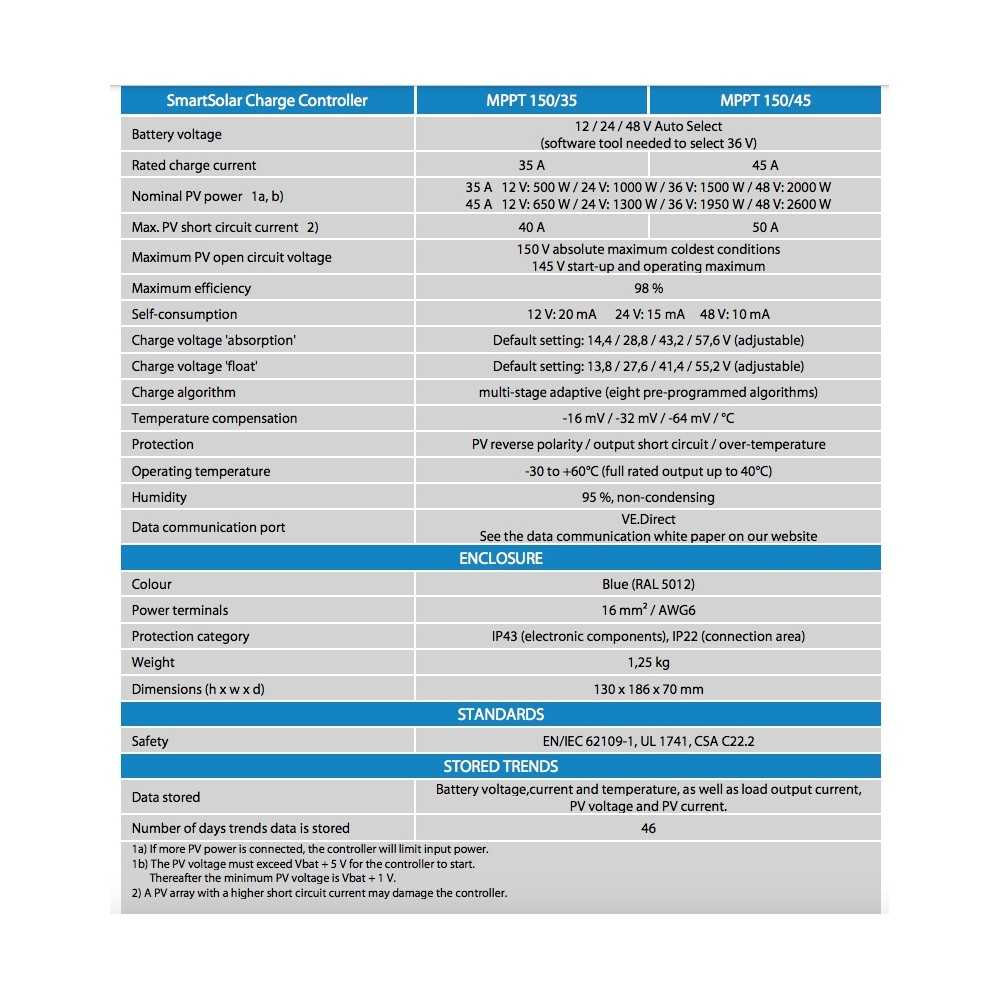

Technical Specifications:
Battery voltage: 12/24/48 V auto detected;
Maximum output current: 35 A;
Maximum PV power: 500 W (12V) 1000 W (24V) 2000 W (48V);
Maximum PV open circuit voltage: 150 V;
Maximum efficiency: 98%;
Self-consumption: 100 mA;
Operating temperature: -30°C ÷ +60°C;
Protection class: IP 43 (electronic components) - IP22 (connections);
Size: 130x186x70 mm (5.1x7.3x2.8 inches);
Weight: 1,25 kg (2.8 lbs).

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
