STAINLESS STEEL DRAWER REFRIGERATORS-FREEZERS THE NEW OCX2 SERIES

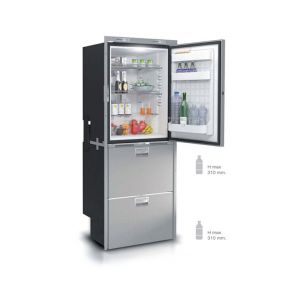

Vitrifrigo DW360 OCX2 BTX stainless steel upper refrigerator compartment and lower Freezer/Freezer compartment, internal refrigeration unit, 12/24V 45W/61W. Upper Refrigerator 157lt, Lower Freezer/Freezer 144lt.
The Stainless Steel Drawer Series has been completely updated in both design and function. The stylish new square edge door design with the Steelock positive latch handle has the added functionality of a vent position for air circulation during periods of non-use preventing mould or bad odours in the fridge. The single section, stainless steel fitting frame allows the fridge to be securely fixed either with the door flush or proud of your furniture and has integrated vent slots to improve air flow and the efficiency of the cooling unit behind.
Technical data
Total volume lt 301
Upper compartment volume lt 157
Lower compartment volume lt 80+64
Net weight kg 102
Upper compartment power supply (A) 12/24Vdc (also available with dual electronic box 12/24Vdc - 100-240Vac 50/60Hz)
Lower compartment power supply (B) 12/24Vdc (also available with dual electronic box 12/24Vdc - 100-240Vac 50/60Hz)
Upper compartment nominal consumption (A) 45W
Lower compartment nominal consumption (B) 61W
Overall width mm. 682
Overall height mm. 1697
Overall depth mm. 591
- Double Door Position
One single fitting frame for 2 versions: DOOR INSIDE and DOOR OUTSIDE
- Steelock
design and technology into a "top" lock (Flush Flange only)
- LED Thermostat
An elegant thermostat for a perfect temperature setting
- Vent Position
The new Steelock latch has a vent position for air circulation during periods of non-use.
- Venting Frame
New hole system for better air circulation and cooling efficiency
- Drawers
multi purpose spacious and sturdy drawers
- Stainless steel 316
Models of the drawer series are made of stainless steel 316
- Led light
LED light for a perfect lighting in your fridge
- D power (optional)
12/24Vdc - 100-240Vac 50/60Hz dual electronic control
