This item is assembled to order and takes approximately 10/12 business days to ship.

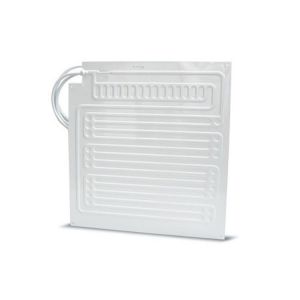

PT9 R1030035-GR Plate Evaporator

PT9 Plate Evaporator with quick couplings to be directly connected to the cooling unit. Flat evaporators can be easily installed and provide a multitude of different cooling requirements, due to the ability to bend them to fit into the refrigerated compartment. When installing, always use the stand-offs and provided holes in the plate evaporator.
Dimensions 480x450 mm.
Copper tube length: 180 cm.
Features & Plus:
Lineset
available models:
- LINESET-1M-PT-Q (1 mt)
- LINESET-3M-PT-Q (3 mt)
optional for PT and S series

Thermostat sold separately, see related items.
The charts after the technical data describe the various types of condensation, also showing a simple combination guide for a cooling unit, with a specific example.
