This item is assembled to order and takes approximately 25 business days to ship.

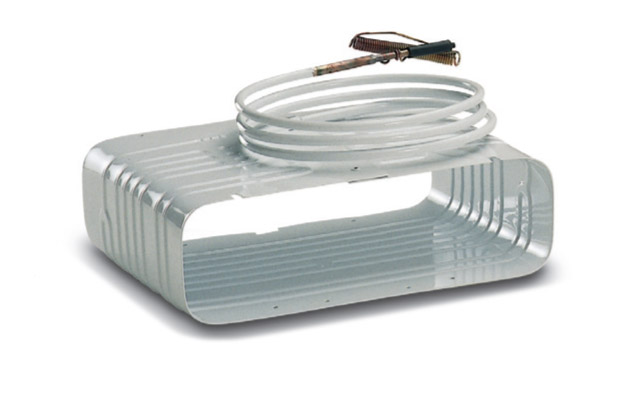

S3 Boxed Evaporator

S3 Boxed Evaporator with quick couplings to be directly connected to the cooling unit. Dimensions 318x210x96 mm. R10313-GR model. Cooling systems with boxed evaporators are recommended for all installations where a freezer compartment is required, leaving the remainder of the box as refrigerator space. Boxed evaporators with bottom piece and lids can be placed horizontally or vertically according to requirements and available space.
Features & Plus:
Lineset
available models:
LINESET-1M-PT-Q (1 mt)
LINESET-3M-PT-Q (3 mt)
optional for PT and S series

Thermostat sold separately, see related items.
The charts after the technical data describe the various types of condensation, also showing a simple combination guide for a cooling unit, with a specific example.
