Note: the pump has no automation, and you have to operate it by switch, preferably button.
Recommend pairing it with Panel kit with black water level probe our code 35160070.
Attention: the switch that's on 35160070 just need to query the LEDs and not to operate the pump. You must always mount apart a button or switch.

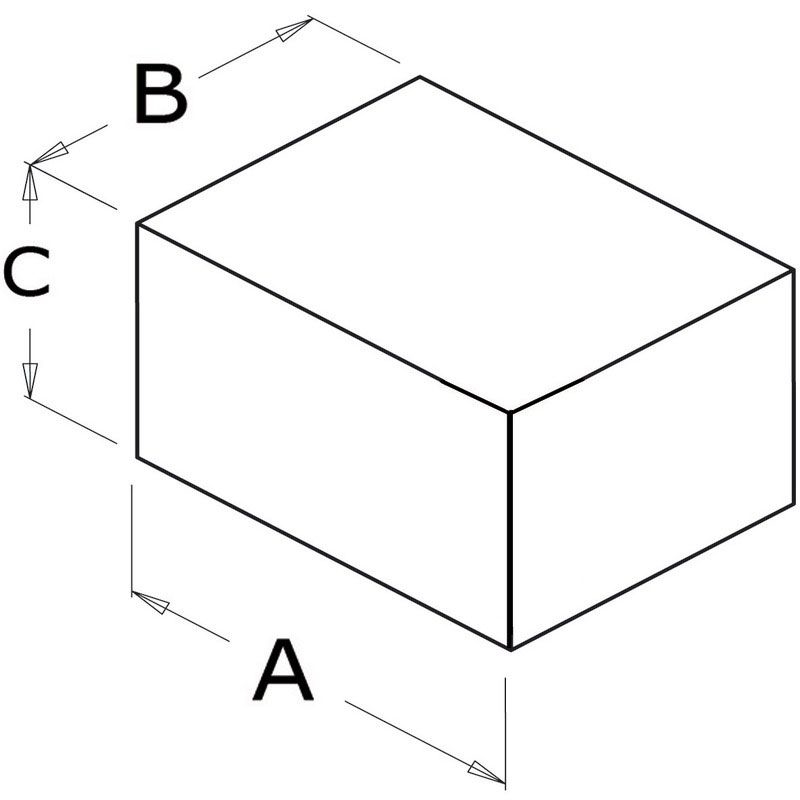

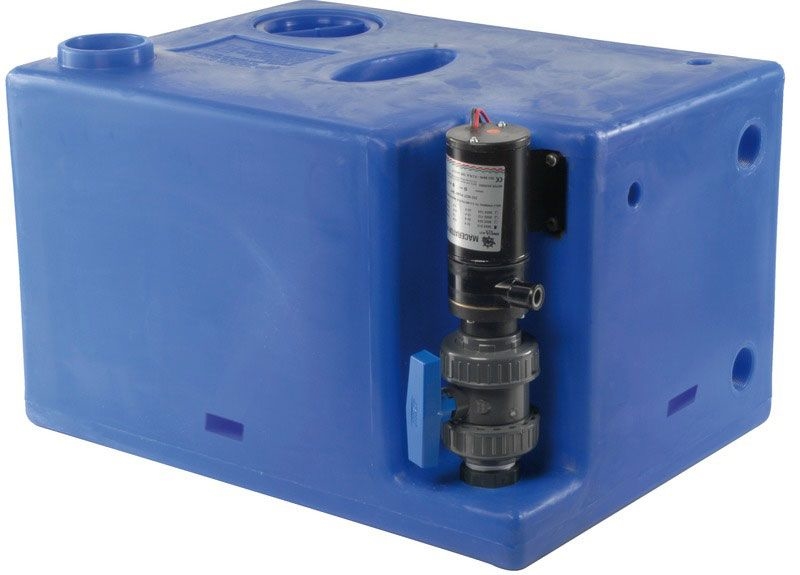

Sanitary water tank according to ISO 8099 rules. Delivered ready for installation. Compatible with all manual and electric toilets. The electric crusher has a delivery capacity 43 Lt/min with 3 mt head, selfpriming from 0,60 mt, power supply 12V, electric input 12 A/h. Crusher size: 240x130x90 mm with D.25 mm outlet. Tank with female intake joint D.1-1/2" + D.3/4". Female vent joint D.3/4" Emergency manual drain joint D.1-1/2". Mounting seat for level gauge - 5 holes (level gauge not included). Grooves for fixing hooks (our code 35160059) Dimension tank: A 650 mm - B 490 mm - C 400 mm. Recess: D 100 mm. Nett volume: 117 lt.
Note: Product available in 7 working days, the order transmitted directly to the manufacturer/importer.
