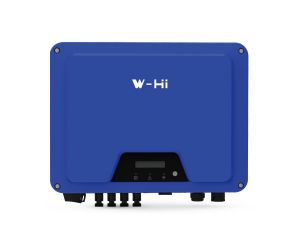

Three-phase grid-tied inverter with 2 MPPT channel in power to 20kW. The ease of installation makes the W-HPT the ideal solution for industrial photovoltaic systems. Thanks to the wide input range, it is easy to configure and adapts to any type of need both on new and on retrofit systems.
• Efficient
– Efficiency among the best on the market
– Fast and accurate MPPT tracking
– Maximum yield
• Compact
– Small size
– Attractive design
• Simple
– Quick and intuitive assembly and installation
– Plug & play system
• Strong
– Die-cast aluminum
– Degree of protection IP65
• Reliable
– 10 year guarantee
– Highest quality components
– Long useful life
• Integrated monitoring
– via my Leonardo App (Android / iOS) and web portal
Technical data:
- Model: W-HPT-20K.
Input/DC
- Max. PV power: 30000 Wp;
- Max. Input Voltage: 1000 V;
- MPP Voltage Range: 150-900 V;
- Min. DC Voltage / Start Up Voltage: 150/180 V;
- Full Load MPP Voltage Range: 430-900 V;
- Nominal DC-Input Voltage: 620 V;
- Max. Input Current: 26 A;
- Max. DC Short-circuit current: 40 A;
- No. of independent MPTT inputs: 2;
- N° of PV Strings per MPPT: 2;
Output/AC
- Rated Power: 20000 W;
- Max. AC Apparent Power: 22000 VA;
- Rated Grid Voltage: 380/400 | 3 / 3L-N-PE Vac;
- Rated Power Frequency: 50/60 Hz;
- Max. Output Current: 31.9 A;
- Cosφ: from 0.8ind to 0.8cap;
- THDi @ Rated Power: <3%.
Efficiency
- Max. efficiency: 98.6%;
- Med. efficiency: 98.2%.
Protection function
- Anti-Islanding Protection: Integrated;
- Input Reverse Polarity Protection: Integrated;
- Insulation Resistance Recognition: Integrated;
- Residual current monitoring: Integrated;
- Output Over Current Protection: Integrated;
- Output Short Circuit Protection: Integrated;
- Output Over Voltage Protection: II (DC), III (AC);
- Surge Protection: DC - Optional /AC - Type II.
General data
- Dimensions (WxHxD): 425x351x200 mm;
- Weight: 20 kg;
- Typical Noise: <45 db(A);
- User Interface: LCD and LED or LED;
- DC Connection Type: MC4;
- AC Connection Type: Plug-in connector included;
- Communication: Wi-Fi Dongle included;
- Cooling Method: Fanless;
- Operating Ambient Temperature: -25°C ~ +60°C;
- Allowable Relative Humidity Range: 0% to 100%;
- Max. Operating Altitude: 3000 m (>3000 Reduction);
- Degree of Protection (IEC 60529): IP65;
- Climatic Category (IEC 60721-3-4): 4K4H;
- Isolation Method: Transformerless;
- night power Consumption: <1 W.
