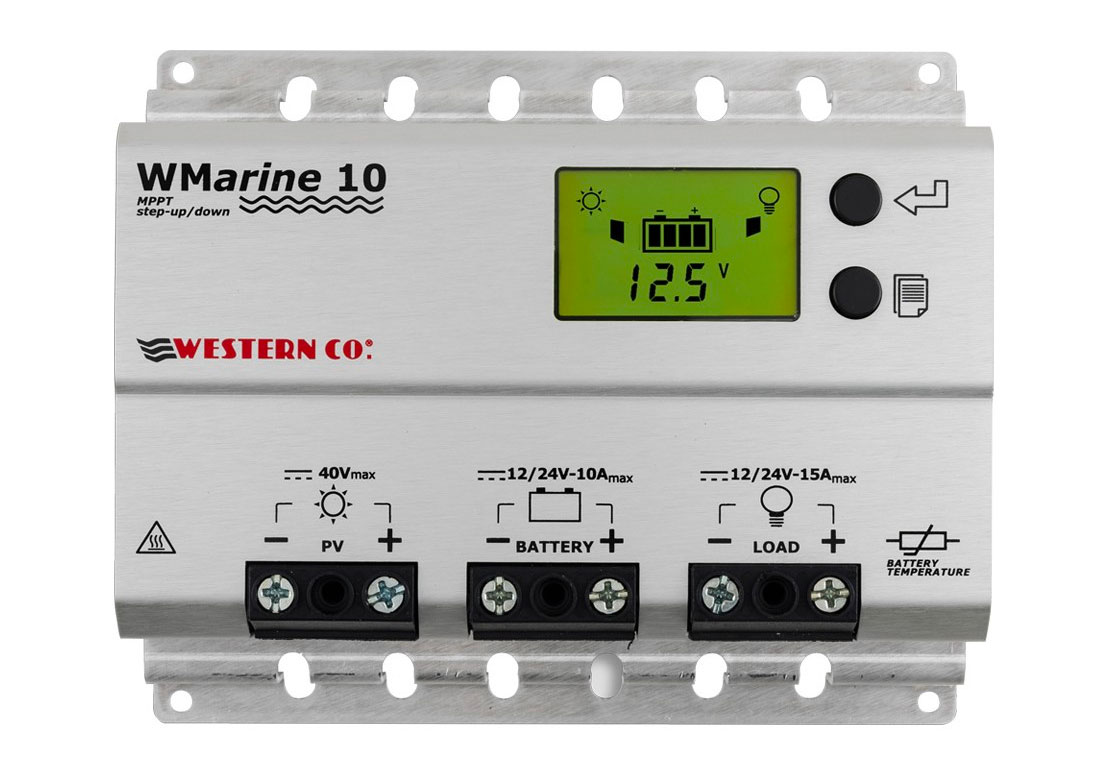

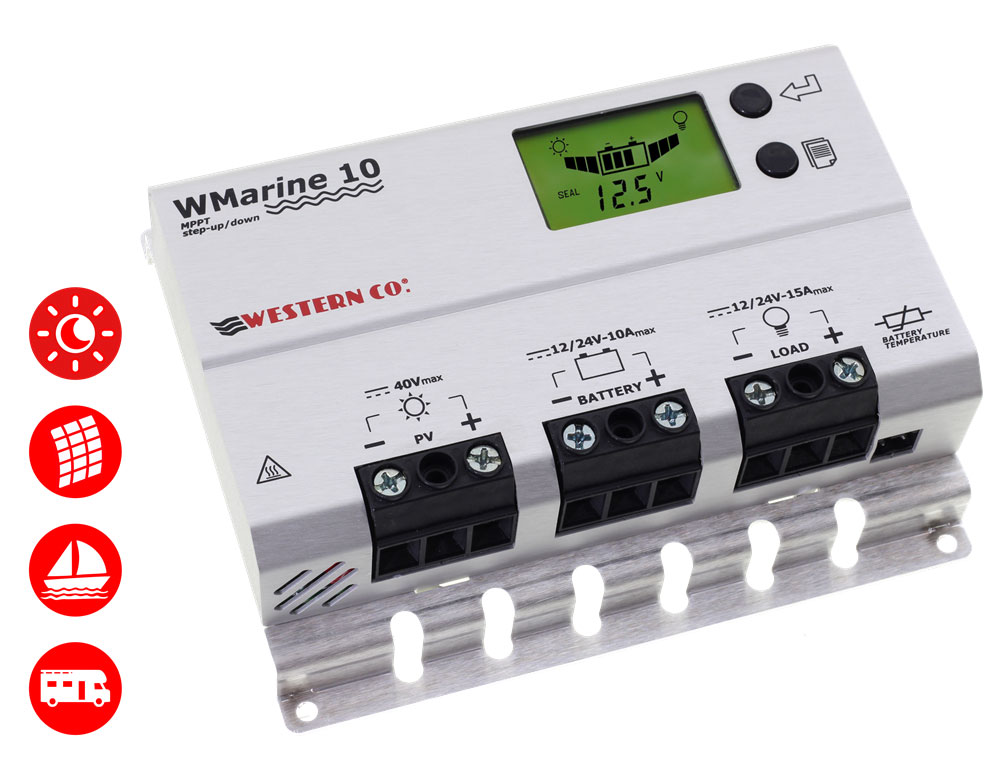

WMarine10 is a complete solution for stand alone photovoltaic systems, ideal for charging batteries of camper vans and boats. The various load management programs available make WMarine10 the complete solution in several applications.
WMarine10 is capable of making the PV panel work at a voltage higher or lower than that of the battery and with 10Voc voltage to charge 12V and 24V batteries. The module voltage during MPPT circuit function goes from 5 to 30V both with 12V and 24V batteries.
General Features:
- MPPT charge with buck-boost circuit.
- Max PV panel power 120W (12V) 220W (24V).
- Integrated blocking diode.
- For sealed, GEL and flooded lead acid batteries.
- Temperature compensated charge voltage.
- 12-24V automatic detection of battery voltage.
- 18 different programs for load management.
- 48 LCD symbols for user interface.
- Low battery protection.
- Over-temperature protection.
- Reverse polarity protection of battery.
- Output overload protection.
- IP20 metal box.
- Made in Italy.
- 5 Years Warranty.
