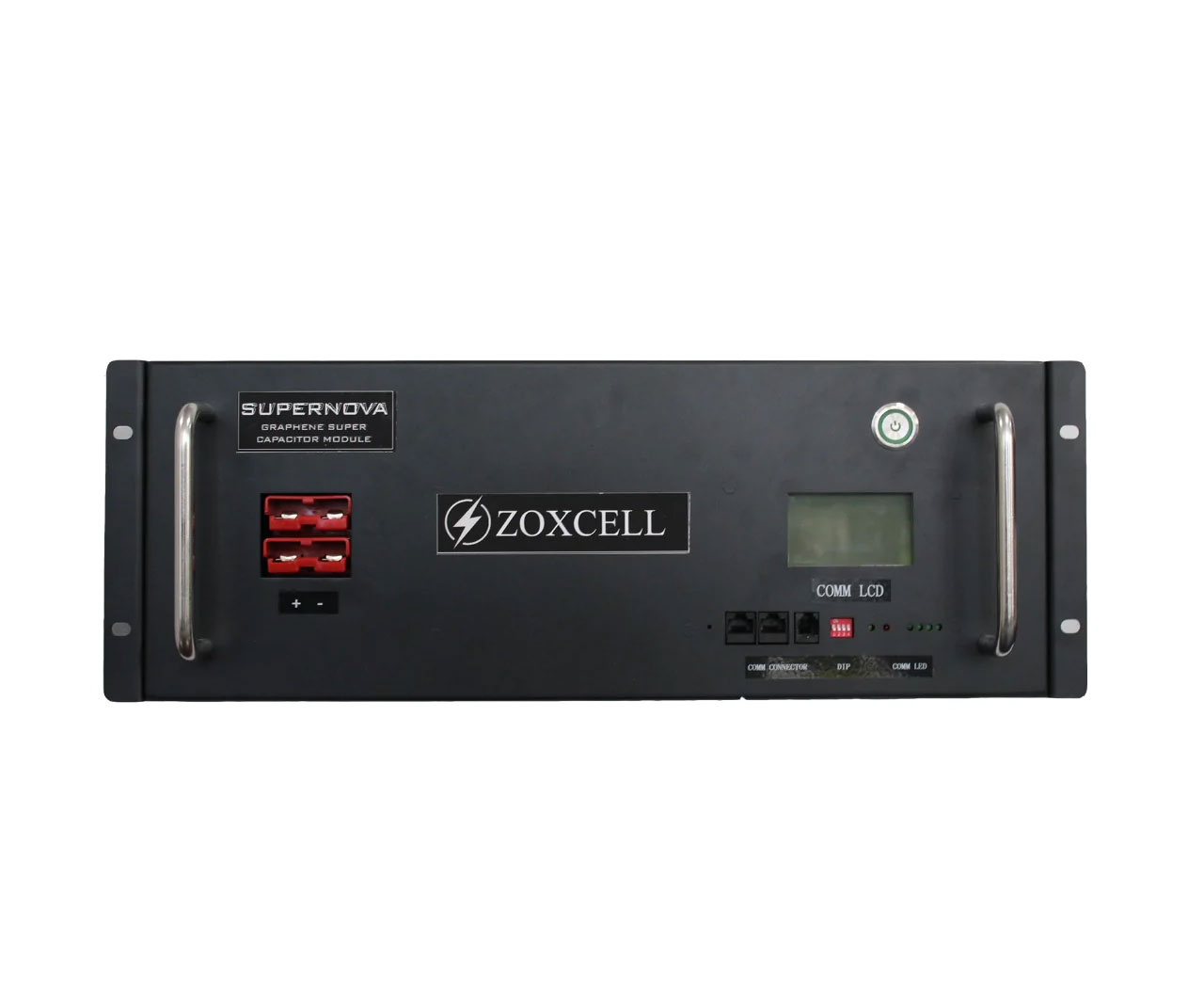

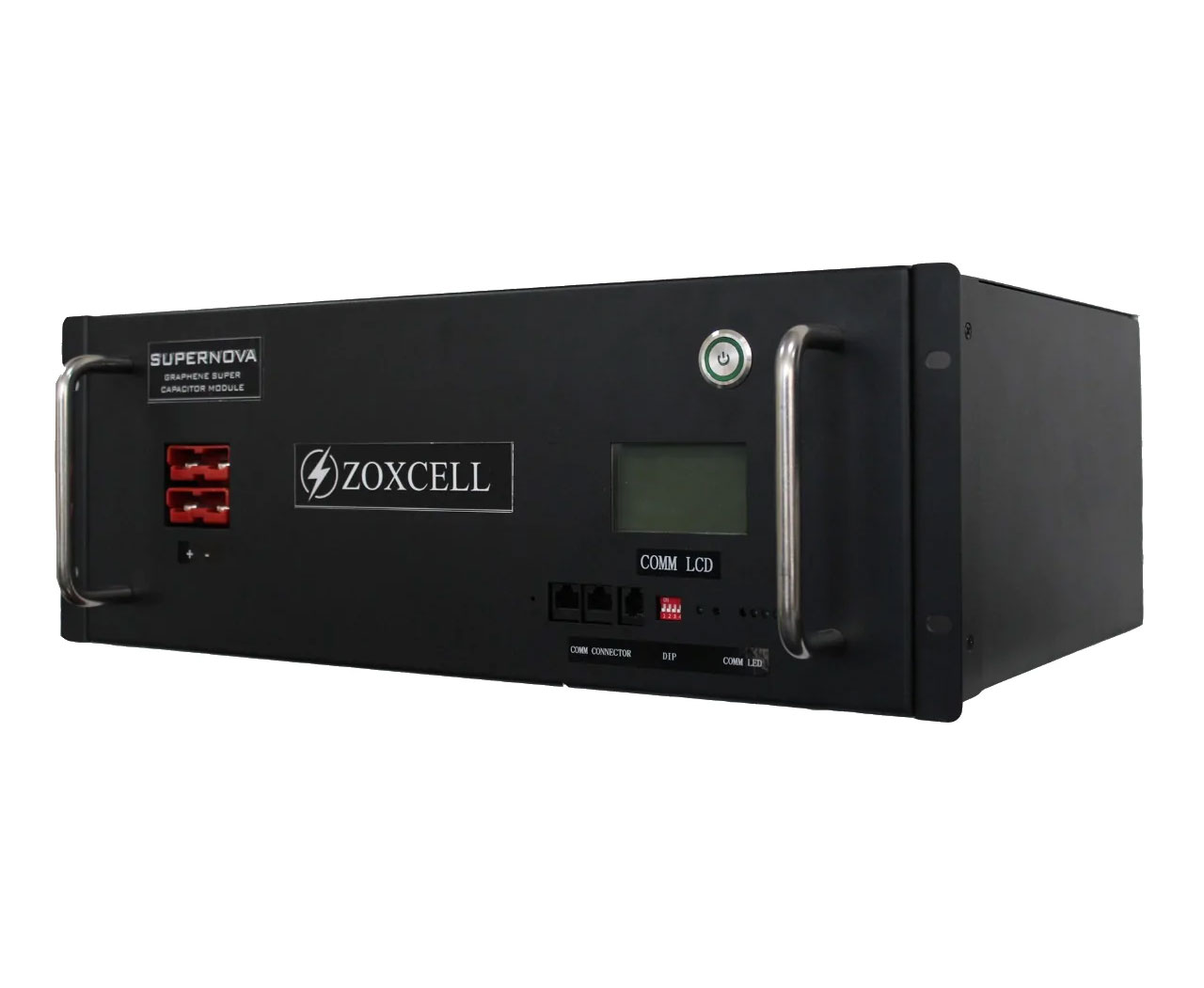

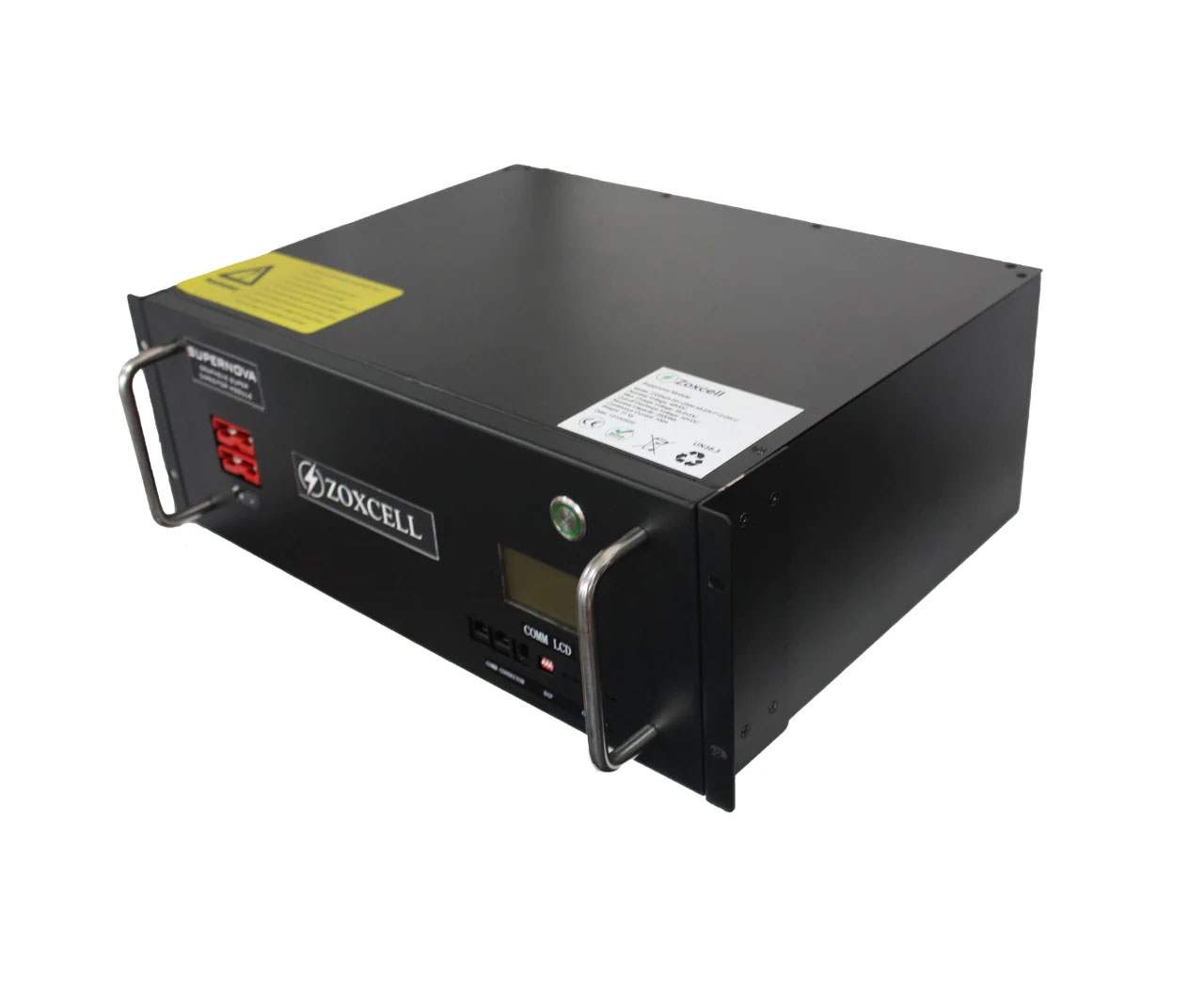

Zoxcell Supernova 48V 7.5kWh Supercapacitor Battery #ZC20052002

48V 7.5kWh Zoxcell Supernova Supercapacitor Accumulator with the new energy storage technology that offers high power density, almost instant recharging and very long lifetimes, clean, safe and sustainable energy for everyone!
Price:
€8,712.00
Listing:
€10,890.00
You Save:
€2,178.00 (20%)

Description

Zoxcell Supernova 48V 7.5kWh Supercapacitor Battery

High-performance energy storage solution based on breakthrough graphene material
Supercapacitors are a novel energy storage technology that offers high power density, almost instant recharging and very long lifetimes. Zoxcell graphene based Super Capacitors deliver significant economic benefits across a wide range of markets including motorsports, automotive, aerospace, heavy  industry, heavy transportation, maritime, and renewable and grid.
Why Supercapacitor are better than Chemical Battery?
Unlike chemical batteries, Super Capacitors don't use liquid electrolytes & chemical reactions to store energy. This allows them to charge and discharge much faster than batteries. They can also survive thousands of charge and discharge cycles, offering much longer usable life. With power density up to 60 times greater than batteries, they can be connected in parallel to create combined power supply units.
Zoxcell provides a solution that will re-invent the technology in energy storage applications. Zoxcell Supernova is a graphene-based energy storage module, a combination of supercapacitor cells with a built-in battery management system (BMS). Providing extraordinary projected life of 3 times longer than chemical batteries and 50,000 cycles.
Advantages:
• MAXIMUM SAFETY
There are no chemical reactions. No danger of thermal leaks.
• Depth of DOWNLOAD
100% real discharge capacity.

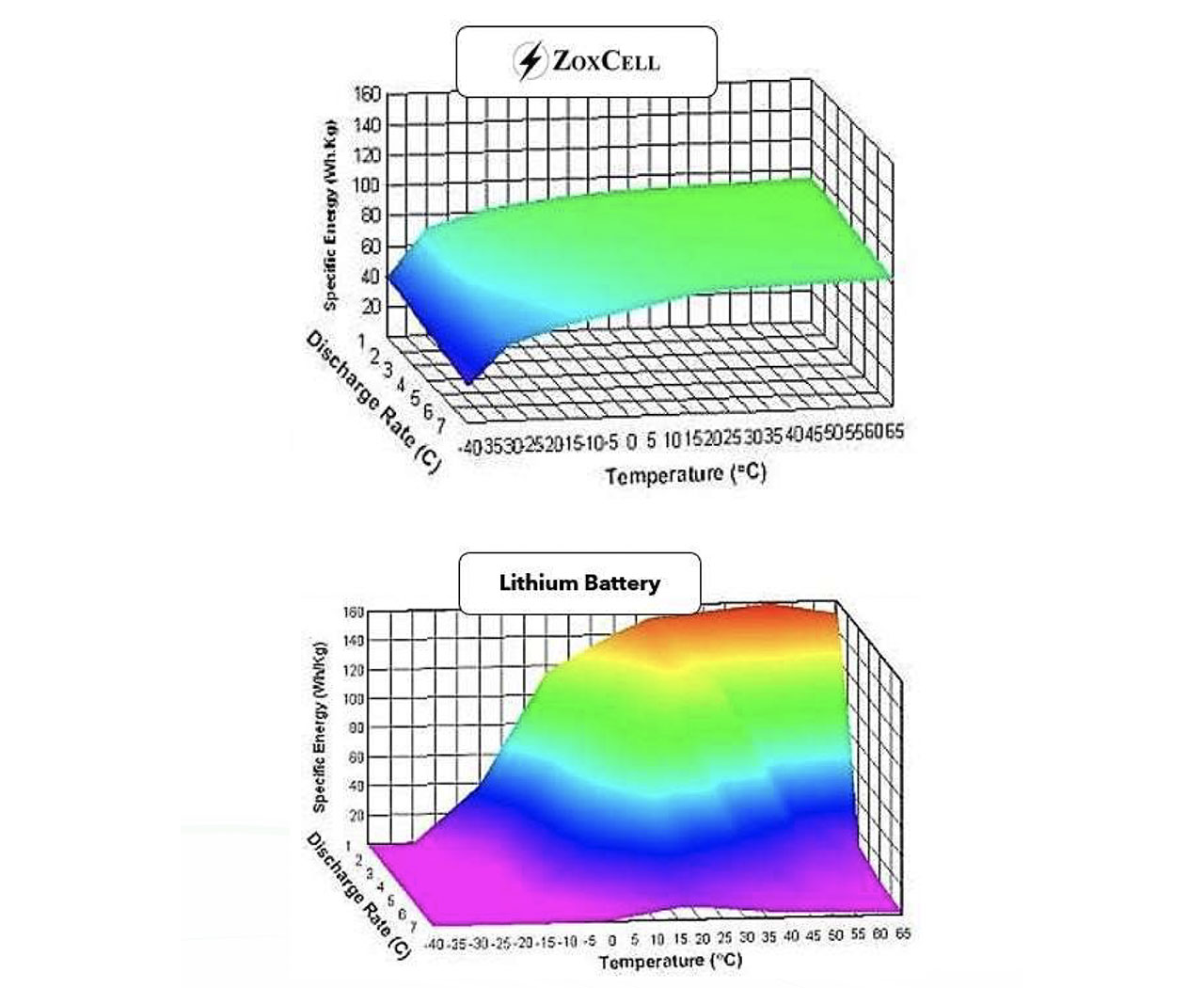

• -20 ~ + 60 ° c
They guarantee reliability even in extreme temperatures.
• Minimum 20000 cycles
They last at least 5 times longer than lithium batteries.
• NO MAINTENANCE
No maintenance to be done.
• GREEN ENERGY
The cleanest and most sustainable storage technology on the market.
• LOWER COST
Given the incredible lifespan, the long-term cost is much lower.

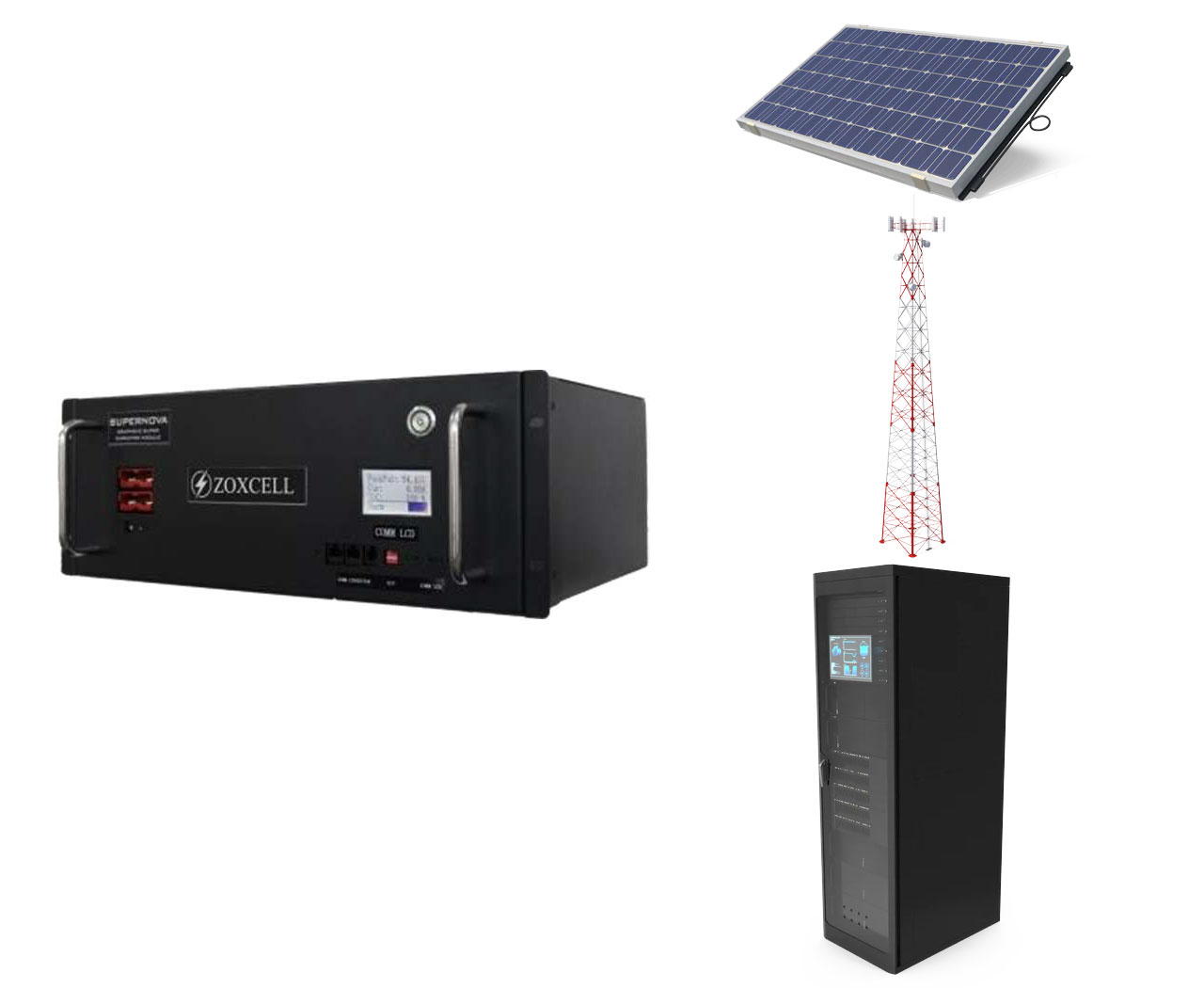

PHOTOVOLTAIC STORAGE / UPS / COMMUNICATION
The module completely replaces 48V lead or lithium batteries for photovoltaic energy storage.

The display shows:
- Voltage
- Current
- SOC state of charge
- SOH State of health
- Number of cycles
- Temperature

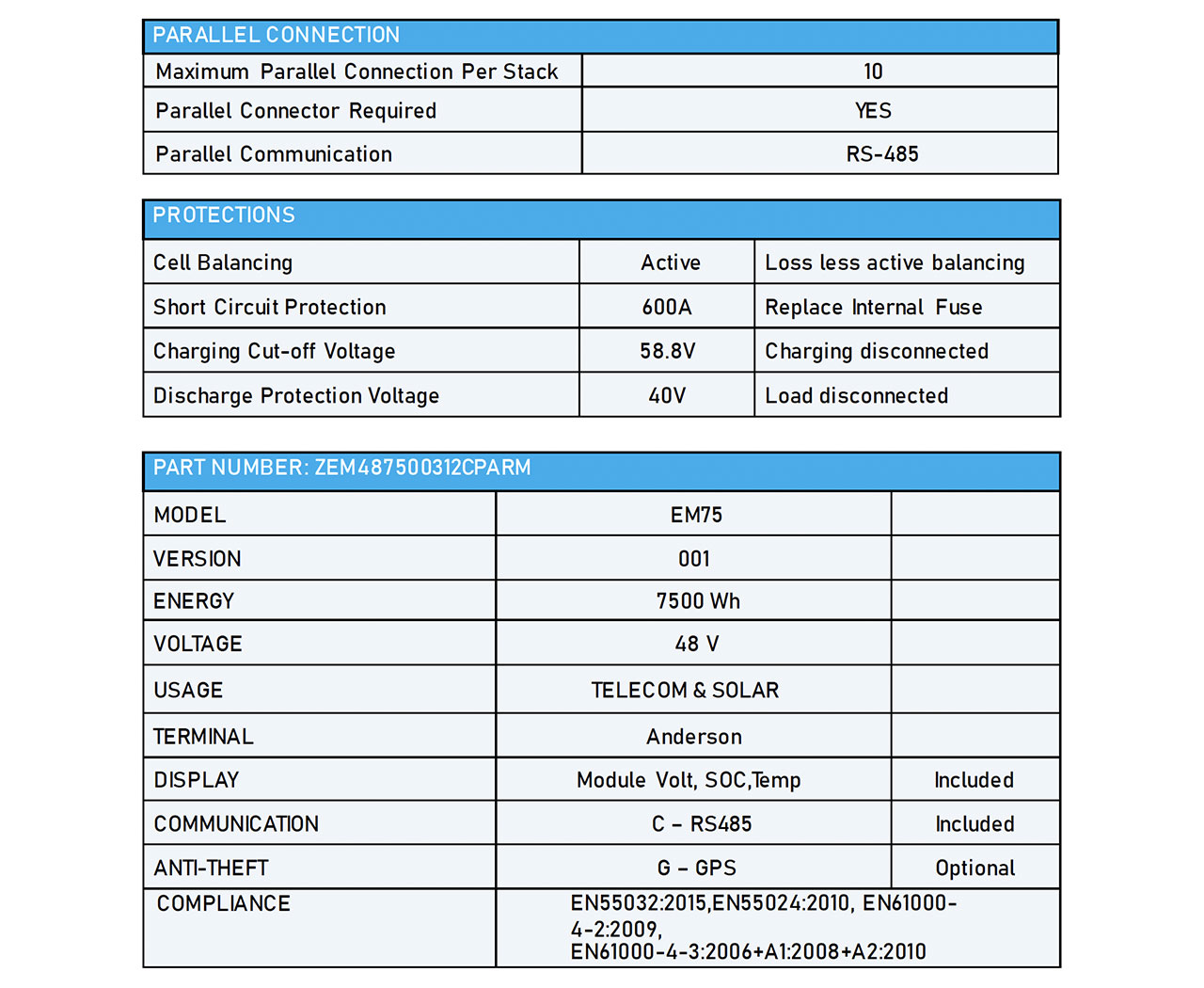

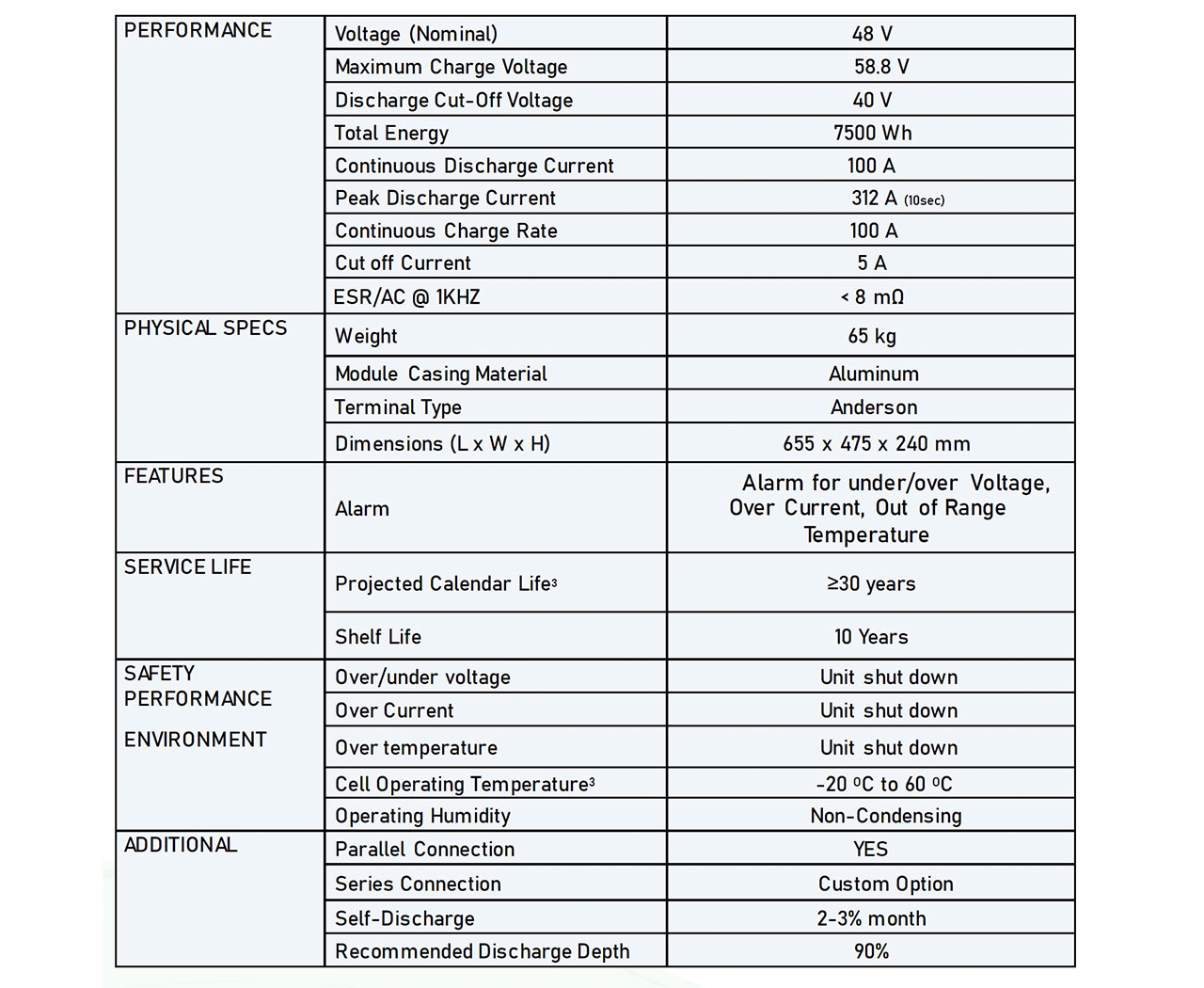

Technical features:
Model: EM75;
Brand: Zoxcell;
Voltage (Nominal): 48 V;
Maximum Charge Voltage: 58.8 V;
Discharge Cut-Off Voltage: 40 V;
Total Energy: 7500 WH;
Continuous Discharge Current: 100 A;
Peak Discharge Current: 312 A;
Continuous Charge Rate: 100 A;
Cut off Current: 5 A;
ESR/AC @ 1KHZ: < 8 mΩ;
Module Casing Material: Aluminum;
Terminal Type: Anderson;
Operating temperature: - 40 ° to + 65 ° C;
Dimensions (W x D x H): 655x475x240 mm;
Weight: 65 kg;
Warranty: 10 years.

IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
