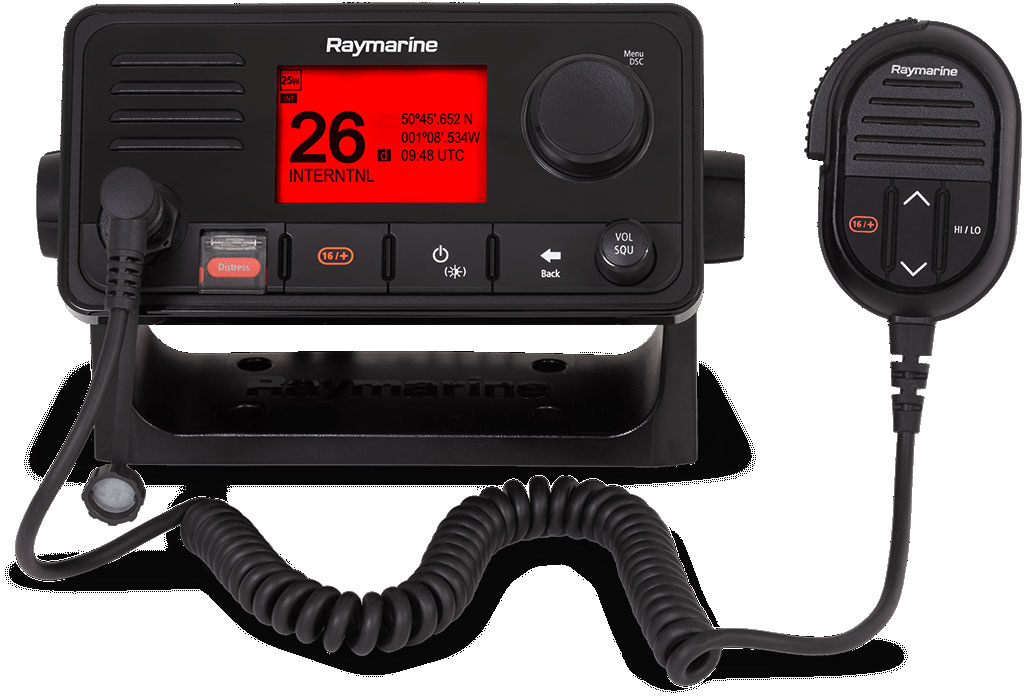

Raymarine’s Ray63 radio comes with oversized controls and a big screen for easy operation offshore. Ray63 is a full-function VHF marine radio with Class D Digital Selective Calling (DSC) and a built-in GPS receiver. The Ray63 also supports 1 wired or 2 wireless RayMic controllers for true multi-station control and intercom capability.
Key Features
Full-sized marine VHF with Digital Selective Calling
Wired or wireless expansion with optional RayMic handset stations
Built-in GPS/GNSS receiver with connection point for optional external antenna
NMEA2000 and NMEA0183 networking for integration with onboard systems
Audio output connection for optional passive remote speaker (A80542)
Surface and trunnion mount kits included
Styled to compliment the Axiom family of multifunction displays
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: -20ºC (-4ºF) to +60ºC (140ºF)
Storage Temperature: -25ºC (-13ºF) to +70ºC (158ºF)
Relative Humidity: 95%
Water Proofing: IPx6 & IPx7
Connections: 1x NMEA 0183 | 1x SeaTalkng ® / NMEA 2000 | 1x Front Fistmic connection | 1x Rear connection for 2nd station | 1x Audio (RCA) | 1x GNSS (GPS) antenna (TNC)
POWER
Nominal Supply Voltage: 12 V dc (Reverse polarity and over voltage protection)
Operating Voltage Range: 9 Vdc to 16 Vdc
Current Consumption: Less than 6 A at high power (13.6 V)
Standby: 600 mA
Receive: 2 A
TRANSMITTER
Channels: All available US, International and Canadian VHF marine bands
Frequency Range: 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Frequency Stability: +/- 1.5 ppm
Channel Spacing: 12.5 kHz
Power Output: Low power setting — 1 W | High power setting — 25 W
Spurious emissions: Better than –36 dBm at 25 W (Less than 0.25 μW)
Maximum Deviation: +/- 5 kHz
Antenna Impedance: 50 Ohms (typical)
RECEIVER
Receiver Type: Double conversion super heterodyne
Channels: All available US, International and Canadian VHF marine bands
Frequency Range: 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Sensitivity: Better than 1 microvolt EMF @20dB SINAD
Squelch Sensitivity: Less than —2 dBμ EMF
Hum and Noise: Better than –40 dB
Audio Distortion: Less than 10%
Receiver Sensitivity: Distance — 119dBm (0.25uV) @ 12dB SINAD (typical)
Local — 110dBm (0.7uV) @12dB SINAD (typical)
Adjacent Channel Selectivity: More than 70 dB
Spurious Response Rejection: More than 70 dB
Inter Modulation Rejection: More than 70 dB
SPEAKER
Base Station Speaker Power Output: 2.5W (8Ω)
Fistmic Speaker Power: 1W (16Ω)
External Speaker Power: 5W (8Ω)
Handset Speaker Power Output: 1W (16Ω)
GNSS (GPS)
Channels: 72
Cold Start: <2 minutes
Receiver IC Sensitivity: –167 dBm (Tracking) / –148 dBm (Acquisition)
GNSS Compatibility: GPS | GLONASS | *Beidou
SBAS Compatibility: WAAS | EGNOS | MSAS
Special Features: Active Jamming and Interference Reduction
Operating Frequency: GPS L1 C/A | GLONASS L10F | Beidou B1
Signal Acquisition: Automatic
Almanac Update: Automatic
Geodetic Datum: WGS-84 (alternatives available through Raymarine MFD)
Refresh Rate: 10 Hz (10 times per second Concurrent GNSS)
Antenna: Internal — Ceramic chip mounted near top of unit
External — Passive antenna connection via TNC connector
Position Accuracy: Without SBAS: <= 15 metres 95% of the time | With SBAS: <= 5 metres 95% of the time
IN THE BOX
Ray63 VHF DSC Radio
Sun cover
Panel mount gasket
Fistmic
Mounting bracket (Trunnion)
Mounting bracket knobs
Fistmic hook plate
Documentation
4x M4 nuts, spring washers and M4x25 machine screws (For Panel mounting)
4x M4x25 screws (For Bracket (Trunnion) mounting)
2x M4x12 screws (For Fistmic hook plate mounting).
Protective antenna boot
SeaTalkng ® blanking plug
SeaTalkng ® 400 mm (15.7 in.) spur cable
Raymarine E70516.
