Raymarine Element 12 S 12" Navigation Dispaly NO Cartography NO Transducer E70535 #N101064510024

Raymarine Element 12 S 12" Navigation Dispaly NO Cartography NO Transducer E70535 #N101064510024

Raymarine Element 12 S 12" Navigation Dispaly NO Cartography NO Transducer E70535 #N101064510024

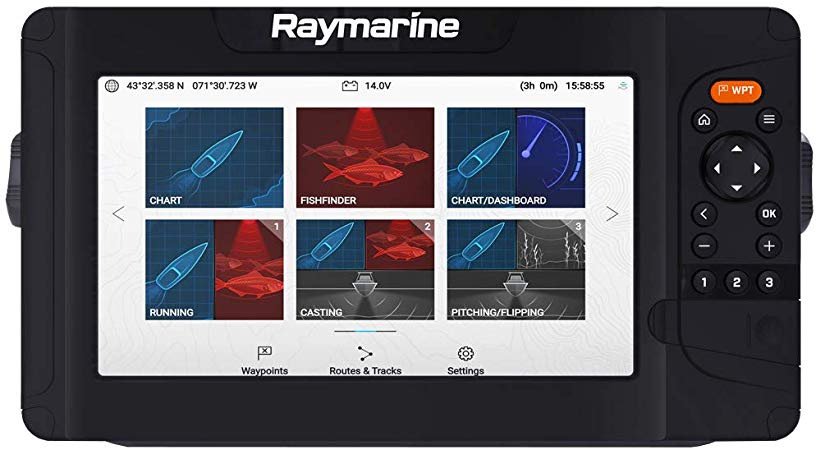

Raymarine Element 12 S 12" Navigation Dispaly with High CHIRP sonar (txd CPT-S only), Wi-Fi and GPS, NO Cartography NO Transducer. E70535.
Price:
€1,374.51
Listing:
€1,579.90
You Save:
€205.39 (13%)

Description

Raymarine Element 12 S 12" Navigation Dispaly with High CHIRP sonar (txd CPT-S only), Wi-Fi and GPS, NO Cartography NO Transducer. E70535.

NEW Element S - Navigation Display | Raymarine by FLIR


The Element S series of navigation displays gives you the freedom to enjoy the open waters—Select your destination and let Element’s fast and accurate 10Hz GPS/GNSS lead the way. Engineered for simplicity and affordable performance, Element S will quickly become your trusted cruising companion. A quad-core processor offers responsive performance and Element’s all-weather, sunlight viewable displays deliver chart and navigation data in beautiful color. Element’s simple and straightforward LightHouse Sport operating system lets you navigate with confidence. Once underway, Element S will keep you on course with a smart list of user-friendly features, such as AIS target overlays, autopilot integration, and sailing instruments displays.

A TRUSTED CRUISING COMPANION
Easy planning and GPS navigation with your favorite charts.
- Support for Raymarine LightHouse™ charts, Navionics, and C-MAP
- Safely navigate busy waterways with an optional Quantum™ wireless radar and AIS receiver
- Built-in High CHIRP sonar for depth and bottom contour imaging
- Map uncharted areas with Raymarine RealBathy™ personal sonar mapping
- Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF


High CHIRP Transducers
Compatible with the CPT-S family of transom and thru-hull transducers.

Connections
- Power
- NMEA2000 integration with AIS, autopilot, sailing instruments, engines, tanks sensors, and VHF
- Wi-Fi connection to Quantum radar

SUPERIOR PERFORMANCE
Enjoy legendary Raymarine display and navigation technology at an affordable price.
- 7, 9, and 12 inch super bright display for all weather conditions
- Category-leading quad-core processor delivers fast chart redraw and responsive performance
- Fast and accurate 10hz GPS/GNSS sensor
- Rugged design and backed by Raymarine’s three-year warranty (product registration required)


GENERAL SPECIFICATIONS
Display Size: 12.0" Optically Bonded LCD
Display Resolution: 1280 x 800 WXGA
Display Type: Non-Touch
Brightness: 1,500 nits

PHYSICAL
Overall Dimensions W x H x D (mm): 357 x 215 x 62mm / (14.1 x 8.5 x 2.4 inches)
Product Weight (lbs): 6.5
Water Ingress Protection:IPx6 and IPx7
Operating Temperature Range: -25°C to + 55°C (-13°F to 131°F)
Storage temperature range: -30°C to +70°C (-22°F to 158°F)


POWER
Voltage: 12V DC (8V to 16V DC)
Power Consumption (max 12V DC): 25 Watts


SENSORS
GNSS / GPS: Built-in GPS/GLONASS
Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
Sonar Depth: CHIRP Sonar = 274m (900 feet)
Radar: Quantum wireless CHIRP compatible Wi-Fi only connection


NETWORKING
NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization)
OUTPUT: GPS (for VHF Distress and DSC). Waypoint, Routes, and XTE for Autopilot. Waypoint and Route sharing between Element displays
SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi: WiFi - 802.11 b / g / n


OTHER SPECIFICATIONS
Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents: Requires LightHouse LNC2, Navionics or *C-MAP
Sonar Mapping: Raymarine RealBathy and Navionics SonarChart Live
Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
External Memory: 1 x microSD slots

Raymarine E70535
