Description

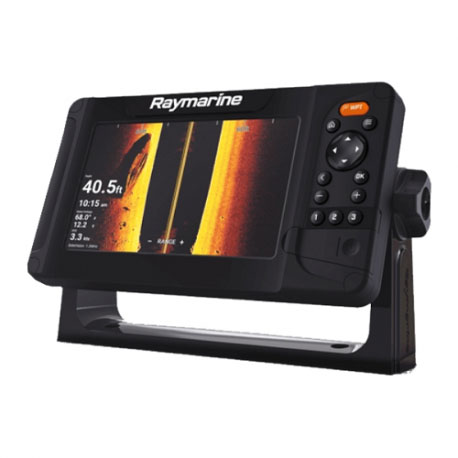

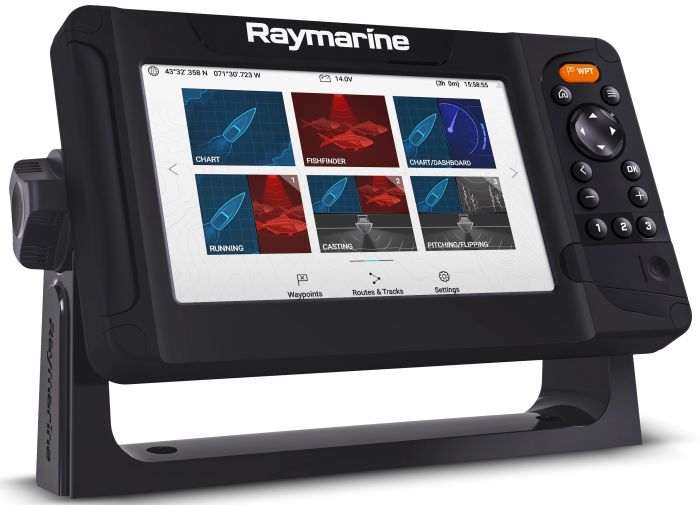

Knowledge is power—and the Element™ CHIRP sonar/GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat. Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.
GENERAL SPECIFICATIONS
Display Size: 7.0" Optically Bonded LCD
Display Resolution: 800 x 480 WVGA
Display Type: Non-Touch
Brightness: 1,500 nits
Viewing Angle: Top 50° / Bottom 60° / Left 70° / Right 70°
PHYSICAL
Overall Dimensions W x H x D: 240 x 135 62mm (9.5 x 5.3 x 2.4 inches)
Product Weight (lbs): 3.0
Water Ingress Protection: IPx6 and IPx7
Operating Temperature Range: -25°C to + 55°C (-13°F to 131°F)
Storage temperature range: -30°C to +70°C (-22°F to 158°F)
POWER
Voltage: 12V DC (8V to 16V DC)
Power Consumption (max 12V DC): 15 Watts
SENSORS
GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS
Sonar Type (Built-in): Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision™ 3D (Standard and Hyper)
Sonar Connection: 15 pin HyperVision™ type connector
Sonar Depth:
CHIRP Sonar = 274m (900 feet)
DownVision™ Standard = 183m (600 feet) | DownVision™ Hyper = 30m (100 feet)
SideVision™ Standard = 91m (300 feet) | SideVision™ Hyper = 30m (100 feet)
RealVision™ 3D Standard = 91m (300 feet) | RealVision™ 3D Hyper = 30m (100 feet)
NETWORKING
NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
Supported NMEA2000 Networking:
INPUT NMEA2000 Compatible Engines (Max 2) | NMEA2000 Compatible Tank Sensors (Max 4) | Heading Sensor (for Chart Stabilization)
OUTPUT: GPS (for VHF Distress and DSC)
SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
Wi-Fi: WiFi - 802.11 b / g / n
BlueTooth: Bluetooth 4.0 + Low Energy + Power Class 1.5
OTHER SPECIFICATIONS
Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX+, and compatible with all charts listed on Raymarine Chart Store.
Tides & Currents: Requires LightHouse LNC2, Navionics or C-MAP
Waypoint / Routes / Tracks: 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
Internal Memory: 8GB Solid State
External Memory: 1 x microSD slots - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
IN THE BOX
ELEMENT SONAR / GPS
- Trunnion bracket with mounting hardware
- Surface mount kit with mounting hardware
- Sun cover
- Power / NMEA2000 1.5m cable
- Documentation pack
Rayamrine code E70532.
