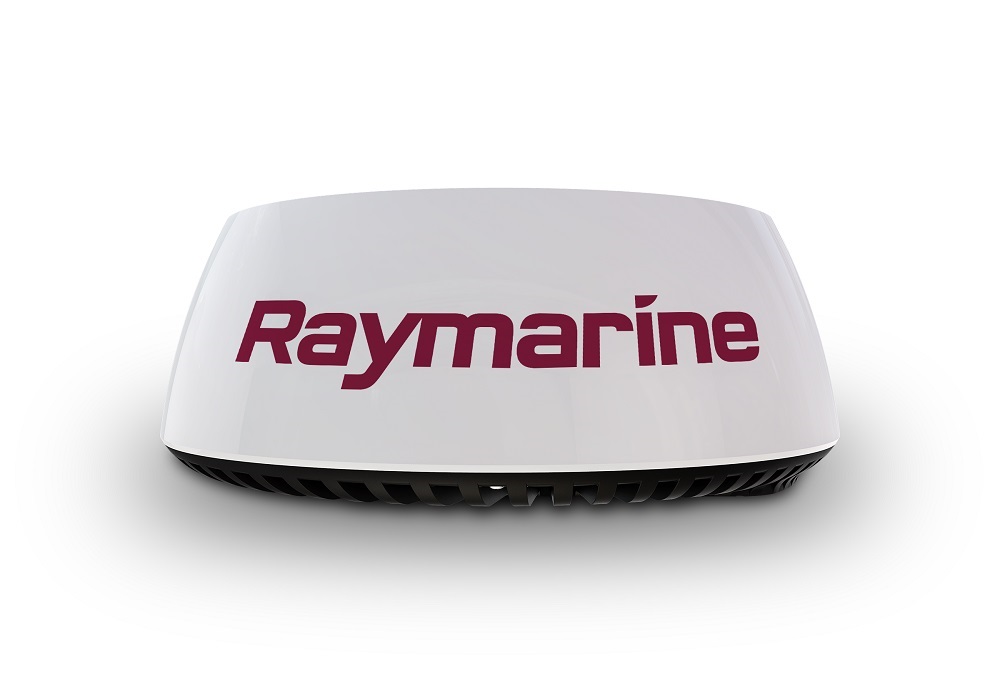

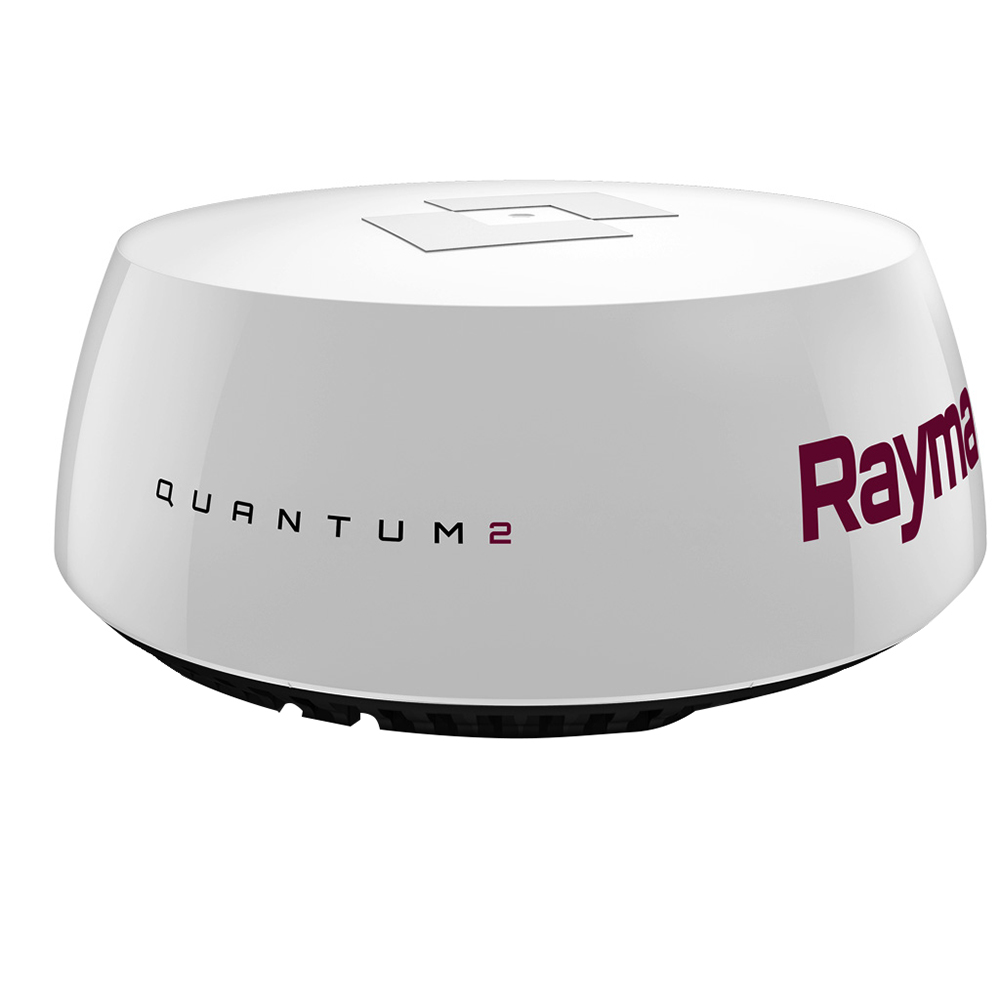

NEW Raymarine Quantum 2 CHIRP Radar with Doppler Collision Avoidance Technology
Introducing Raymarine Quantum 2 Radar with Doppler collision avoidance technology. The Quantum 2 next generation CHIRP pulse compression radar by Raymarine provides superior target awareness at both long and extremely short ranges.
Using advanced Doppler processing, the system instantly highlights moving radar contacts and color codes them to indicate whether they are inbound or outbound. Quantum with Doppler makes it easy to discern potentially dangerous targets when navigating in high-traffic areas.
Easily Identify Dangerous Targets
Raymarine Quantum 2 Doppler target processing readily identifies and color codes moving radar contacts for instant recognition and reduced risk of collision.
Superior Collision Avoidance
Quantum 2 MARPA mode provides an effective means of dangerous target tracking. Raymarine MARPA target tracking is the same technology trusted by the United States Coast Guard.
Key Features
- Doppler moving target display allows for superior situational awareness at-a-glance
- Fully automatic MARPA target tracking, along with manual MARPA mode
- Adjustable TrueTrails target history shows the motion history of moving contacts
- CHIRP Pulse Compression detects contacts as close as 18-feet for zero-visibility navigation
- 24-mile range for early detection of traffic, navigation aids, landfall and weather
- Immediate awareness – Quantum starts up and is ready to go in seconds
- Superior interference rejection eliminates noise from other radars
- Simplified installation with Wi-Fi or thin wire network connectivity
- Easy upgrade – Quantum 2 fits the same bolt pattern as other Raymarine scanners
- Lightweight and easy to install – Quantum weighs up to 50% less than comparable magnetron radars
- Safe emissions – mount Quantum anywhere onboard
- Low power consumption for extended battery life under sail
HOW DOPPLER RADAR WORKS
Microwave energy waves are bounced off of a distant target, just like conventional radar.
Moving targets send back echoes whose frequencies shift upward or downward from what was originally transmitted.
For inbound targets, the frequency increases as the leading edge of the returning echoes are received more frequently as the target’s range decreases.
For outbound targets, the frequency drops as the returning echoes spread out as its range increases.
Doppler radars are engineered to detect these small shifts in wave frequency, and use them to classify moving radar targets.
DOPPLER TARGET PROCESSING
Doppler radar is tuned specifically to detect the radar echo frequency shift returned by moving vs. stationary targets.
Quantum 2 then uniquely color codes moving targets to indicate whether they are getting closer, or moving away.
- Inbound targets are colored red.
- Outbound targets are colored green.
Color coded targets make it simple to pick out moving traffic from other stationary targets like land, navigation aids or stopped/anchored vessels.
GENERAL SPECIFICATIONS
Dimensions: Diameter | Height 541.0 mm | 209.5 mm
Weight: 5.6 kg
Supply voltage: Either 12 V dc or 24 V dc nominal
Minimum: 10.8 V dc | Maximum: 31.2 V dc
Power consumption: Transmit mode (maximum): 17 W | Standby mode: 7 W | Sleep mode (applies only to radars connected via Wi-Fi): 2 W
Waterproofing: IPX6
Operating temperature range: -10°C to +55°C
Storage temperature range: -25°C to +70°C
Additional storage conditions: Store upright; do not block vents on underside
Humidity: Up to 95% at 35°C
Maximum wind speed: 100kts
TRANSMITTER
Type: X-band solid-state transmitter with pulse compression technology
Transmit frequency: 9354 MHz to 9446 MHz
Peak power output: 20W
Duplexer: Circulator
Pulse widths (3 dB): 40 ns to 14.7 us
Chirp lengths: Chirp lengths: 400 ns to 20 us
Pulse reptition frequency: 1200 Hz to 4800 Hz
Chirp bandwidth: Up to 32MHz
Standby mode: Scanner rotation - OFF | Scanner transmission - OFF | Wi-Fi link - ON
ANTENNA
Type: Patch array
Beamwidth (nominal): Horizontal: 4.9° | Vertical: 20°
Polarization: Horizontal
Rotation speed: 24rpm nominal
DOPPLER
Target Tracking: Tracking of 25 simultaneous MARPA and / or ARPA targets
Target Filtering: True Motion mode identifies only those objects that are moving relative to the vessel
COMPATIBILITY
Radar Type: Quantum 2 with Doppler
MFD Compatibility Axiom and Axiom Pro
Perfect for Sailboats, RIBs, and smaller powerboats
Type Solid State CHIRP Pulse Compression with Doppler target tracking
Range Performance 24NM
Performance Lightweight and easy to install. Excellent short and long range performance. Detect targets as close as 18ft
Automatic Bird Mode: No
MARPA Target Tracking: Yes
IN THE BOX

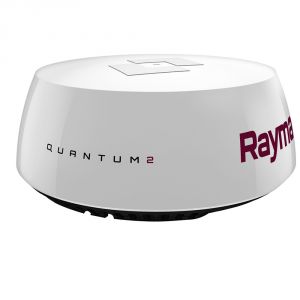

Quantum 2 radome
10m (32.8ft) power cable (T70416 & T70417 only)
M8 mounting bolts with spring washers and flat washers
Documentation pack (including mounting template)
Raymarine code T70417.
