Description

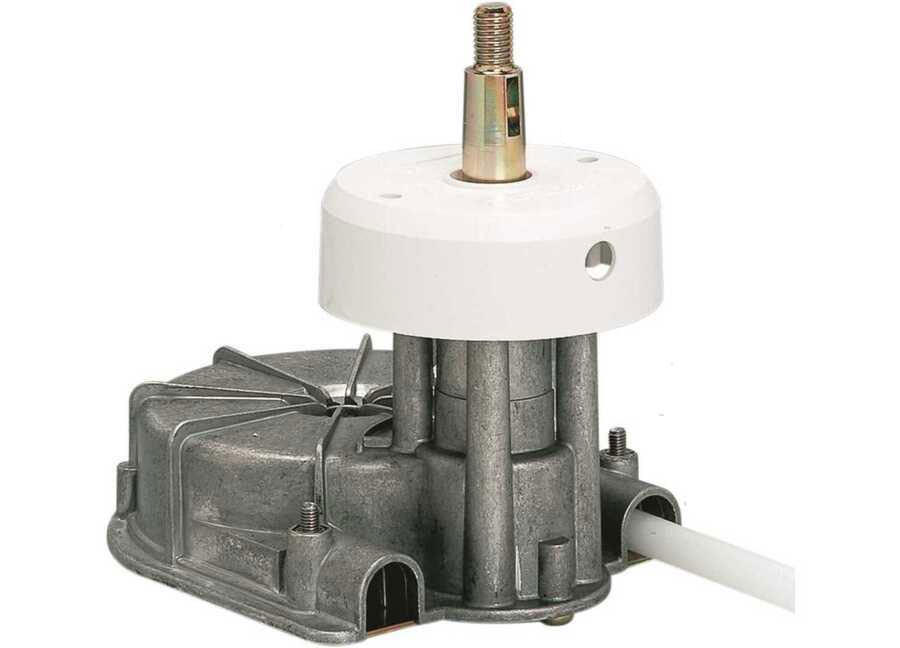

T85W Steering helm for boats with outboard, inboard and stern drive engines up to 110 KW (150 HP). Complete with hub cap. To be completed with M66 or M90 Mach steering cables.
FEATURES AND SPECIFICATIONS:
End of stainless steel cable,
Constructed of materials resistant to corrosion by sea,
Number of steering wheel turns: approx 3,
Actuating stroke: 228 mm,
Maximum allowable steering wheel diameter: 406 mm,
Minimum bending radius of cable: 200 mm,
The guidance system T85 should not be used on boats equipped with engines that exceed the maximum horsepower rating of the boat,
The guidance system T85 is particularly suitable for applications on boats with inboard motors servo assisted,
The package includes the black hubcap.
Conforms to EN 28848
Complies with ABYC P17.
Accessories
-
1Listing:€175.19Price:€131.39You Save:€43.80 (25%)Ultraflex M66 steering cable - 9ft Ultraflex mechanical steering system for models T85, T71FC, T72FC, T73NRFC, T74NRFC.
-
2Listing:€181.05Price:€135.79You Save:€45.26 (25%)Ultraflex M66 In-Outboard mechanical steering system 10ft
-
3Listing:€186.90Price:€140.18You Save:€46.72 (25%)Ultraflex M66 In-Outboard mechanical steering system 11ft
-
4Listing:€192.76Price:€144.57You Save:€48.19 (25%)Ultraflex M66 In-Outboard mechanical steering system 12ft cable
-
5Listing:€198.62Price:€148.96You Save:€49.66 (25%)Ultraflex M66 In-Outboard mechanical steering system 13ft
-
6Listing:€204.47Price:€153.35You Save:€51.12 (25%)Ultraflex M66 In-Outboard mechanical steering system 14ft
-
7Listing:€210.33Price:€157.75You Save:€52.58 (25%)Ultraflex M66 In-Outboard mechanical steering system 15ft
-
8Listing:€216.18Price:€162.14You Save:€54.04 (25%)Ultraflex M66 In-Outboard mechanical steering system 16ft
-
9Listing:€222.04Price:€166.53You Save:€55.51 (25%)Ultraflex M66 In-Outboard mechanical steering system 17ft
-
10Listing:€227.90Price:€170.92You Save:€56.98 (25%)Ultraflex M66 In-Outboard mechanical steering system 18ft
-
11Listing:€233.75Price:€175.31You Save:€58.44 (25%)Ultraflex M66 In-Outboard mechanical steering system 19ft
-
12Listing:€239.61Price:€179.71You Save:€59.90 (25%)Ultraflex M66 In-Outboard mechanical steering system 20ft
-
13Listing:€251.32Price:€188.49You Save:€62.83 (25%)Ultraflex M66 In-Outboard mechanical steering system 22ft
