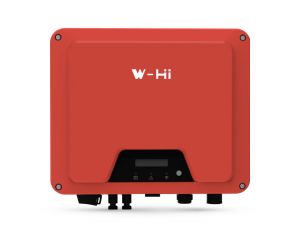

Single-phase grid-tied inverter with 2 MPPT channel in power to 6kW. The ease of installation makes the W-HPS the ideal solution for residential photovoltaic systems. Thanks to the wide input range, it is easy to configure and adapts to any type of need both on new and on retrofit systems.
• Efficient
– Efficiency among the best on the market
– Fast and accurate MPPT tracking
– Maximum yield
• Compact
– Small size
– Attractive design
• Simple
– Quick and intuitive assembly and installation
– Plug & play system
• Strong
– Die-cast aluminum
– Degree of protection IP65
• Reliable
– 10 year guarantee
– Highest quality components
– Long useful life
• Integrated monitoring
– via my Leonardo App (Android / iOS) and web portal
Technical data:
- Model: W-HPS-6K.
Input/DC
- Max. PV power: 7800Wp;
- Max. Input Voltage: 600V;
- MPP Voltage Range: 80~550V;
- Min. Input voltage: 70V;
- Nominal DC-Input Voltage: 360V;
- Max. Input Current: 13A;
- Max. DC Short-circuit current: 15A;
- No. of independent MPTT inputs: 2;
- N° of PV Strings per MPPT: 1;
Output/AC
- Rated Power: 6000W;
- Max. AC Apparent Power: 6000VA;
- Rated Grid Voltage: 220/230/240Vac;
- Rated Power Frequency: 50/60Hz;
- Max. Output Current: 27.3A;
- Cosφ: from 0.8ind to 0.8cap;
- THDi @ Rated Power: <3%.
Efficiency
- Max. efficiency: 98.0%;
- Med. efficiency: 97.5%.
Protection function
- Anti-Islanding Protection: Integrated;
- Input Reverse Polarity Protection: Integrated;
- Insulation Resistance Recognition: Integrated;
- Residual current monitoring: Integrated;
- Output Over Current Protection: Integrated;
- Output Short Circuit Protection: Integrated;
- Output Over Voltage Protection: II (DC), III (AC);
- Surge Protection: DC - Optional /AC - Type II.
General data
- Dimensions (WxHxD): 395x328x154 mm;
- Weight: 10 kg;
- Typical Noise: <20 db(A);
- User Interface: LCD and LED or LED;
- DC Connection Type: MC4;
- AC Connection Type: Plug-in connector included;
- Communication: Wi-Fi Dongle included;
- Cooling Method: Fanless;
- Operating Ambient Temperature: -25°C ~ +60°C;
- Allowable Relative Humidity Range: 0% to 100%;
- Max. Operating Altitude: 3000 m (>3000 Reduction);
- Degree of Protection (IEC 60529): IP65;
- Climatic Category (IEC 60721-3-4): 4K4H;
- Isolation Method: Transformerless;
- night power Consumption: <1 W.
IMPORTANT NOTE:
The reduced VAT is reserved for PRIVATE INDIVIDUALS, end users and qualified photovoltaic and thermal energy installers or heat production INSTALLED IN ITALY. In case you do not have the right to the tax deduction (DEALERS) kindly contact us in advance so that an invoice with 22% VAT can be issued as per the law in force. In the absence of receipt of the declaration the order cannot be shipped as a copy of the VAT declaration form must by law be attached to the company invoice. The declaration form and ID document must be sent to the email address.
After purchase, kindly complete and return the VAT declaration form together with a copy of an ID document.
